3VA20258HM360AA0

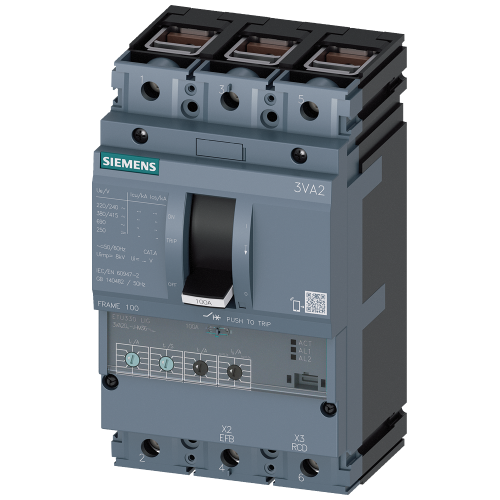

circuit breaker 3VA2 IEC Frame 100 breaking capacity class L Icu=150 kA @ 415 V 3-pole, line protection ETU330, LIG, In=25 A overl

Manufacturer's No: 3VA2025-8HM36-0AA0     Manufacturer: Siemens
circuit breaker 3VA2 IEC Frame 100 breaking capacity class L Icu=150 kA @ 415 V 3-pole, line protection ETU330, LIG, In=25 A overload protection Ir...

Availability On Request

£804.95
  • Circuit Breaker: 3VA2 IEC Frame 100
  • Breaking Capacity: Icu=150 kA @ 415 V
  • 3-Pole, Line Protection
  • Overload Protection: In=25 A, Ir=10 A...25 A
  • Short-Circuit Protection: Ii=1.5...12 x In
  • Ground-Fault Protection: Ig=0.6...1 x In, tg=0.1/0.3s
  • Terminal Connection

Accessories

Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2025-8HM36-0AA0
Net Weight -
2.50kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
150 kiloampere
Adjustment range undelayed short-circuit release -
37 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
10 Ampere
Position of connection for main current circuit -
Front
Power loss -
0.5 Watt
Rated permanent current Iu -
25 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
150 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Frame clamp

Availability On Request

£804.95
