3VA20408JQ360AA0

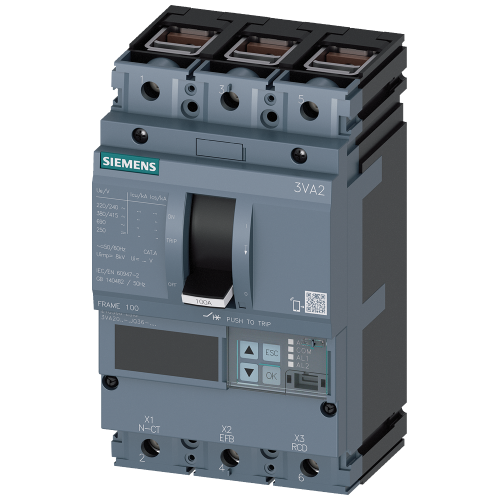

circuit breaker 3VA2 IEC Frame 100 breaking capacity class L Icu=150 kA @ 415 V 3-pole, line protection ETU560, LSIG, In=40 A over

Manufacturer's No: 3VA2040-8JQ36-0AA0     Manufacturer: Siemens
circuit breaker 3VA2 IEC Frame 100 breaking capacity class L Icu=150 kA @ 415 V 3-pole, line protection ETU560, LSIG, In=40 A overload protection I...

Availability On Request

£1,169.73
  • Circuit breaker 3VA2 IEC Frame 100
  • Breaking capacity class L: Icu=150 kA @ 415 V
  • 3-pole, line protection ETU560, LSIG
  • Overload protection: In=40 A, Ir=16 A...40 A
  • Short-circuit protection: Isd=0.6..10x In, Ii=1.5..12x In
  • Neutral conductor protection
  • Optionally with external current transformer
  • Up to 160% ground-fault protection
  • Can be switched off: Ig=0.4... 1 x In, tg=0.05-0.8s
  • Terminal connection

Accessories

Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2040-8JQ36-0AA0
Net Weight -
2.50kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
150 kiloampere
Adjustment range short-term delayed short-circuit release -
24 Ampere
Adjustment range undelayed short-circuit release -
60 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
16 Ampere
Position of connection for main current circuit -
Front
Power loss -
1.2 Watt
Rated permanent current Iu -
40 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
150 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Frame clamp

Availability On Request

£1,169.73
