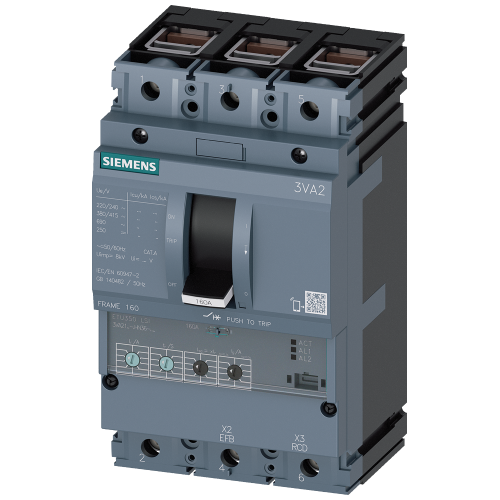

3VA21106HN360AA0

circuit breaker 3VA2 IEC Frame 160 breaking capacity class H Icu=85 kA @ 415 V 3-pole, line protection ETU350, LSI, In=100 A overl

Manufacturer's No: 3VA2110-6HN36-0AA0     Manufacturer: Siemens
circuit breaker 3VA2 IEC Frame 160 breaking capacity class H Icu=85 kA @ 415 V 3-pole, line protection ETU350, LSI, In=100 A overload protection Ir...

Availability On Request

£780.12
  • Circuit Breaker: 3VA2 IEC Frame 160
  • Breaking Capacity: Class H, Icu=85 kA @ 415 V
  • Configuration: 3-pole, line protection
  • Overload Protection: In=100 A, Ir=40 A...100 A
  • Short-Circuit Protection: Isd=1.5...10 x Ir
  • Terminal Connection: Ii=12 x In

Accessories

Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2110-6HN36-0AA0
Net Weight -
2.26kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
85 kiloampere
Adjustment range short-term delayed short-circuit release -
150 Ampere
Adjustment range undelayed short-circuit release -
1200 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
40 Ampere
Position of connection for main current circuit -
Front
Power loss -
10 Watt
Rated permanent current Iu -
100 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Frame clamp

Availability On Request

£780.12
