3VA21255KP320AA0

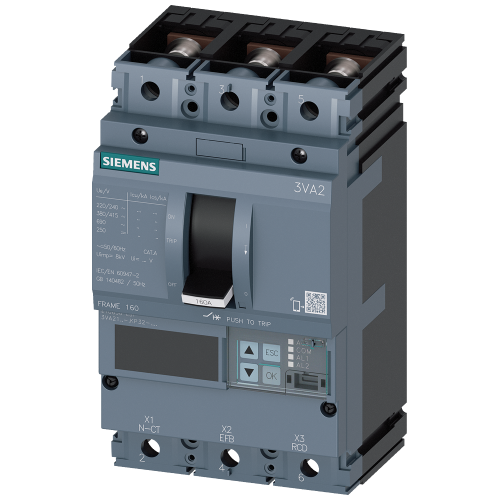

circuit breaker 3VA2 IEC Frame 160 breaking capacity class M Icu=55 kA @ 415 V 3-pole, line protection ETU850, LSI, In=25 A overlo

Manufacturer's No: 3VA2125-5KP32-0AA0     Manufacturer: Siemens
circuit breaker 3VA2 IEC Frame 160 breaking capacity class M Icu=55 kA @ 415 V 3-pole, line protection ETU850, LSI, In=25 A overload protection Ir=...

Availability On Request

£944.71
  • Circuit breaker 3VA2 IEC Frame 160
  • Breaking capacity: Icu=55 kA @ 415 V
  • 3-pole, line protection
  • Overload protection: In=25 A, Ir=10 A...25 A
  • Short-circuit protection: Isd=0.6..10x In, Ii=1.5..12x In
  • Neutral conductor protection
  • Optional external current transformer
  • Can handle up to 160% overload
  • Nut keeper kit included

Accessories

Product video
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA2125-5KP32-0AA0
Net Weight -
2.23kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range short-term delayed short-circuit release -
15 Ampere
Adjustment range undelayed short-circuit release -
37 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
10 Ampere
Position of connection for main current circuit -
Front
Power loss -
0.6 Watt
Rated permanent current Iu -
25 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability On Request

£944.71
