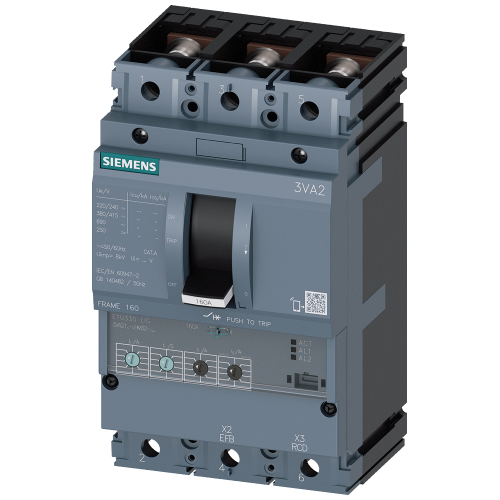

3VA21637HM320AA0

circuit breaker 3VA2 IEC Frame 160 breaking capacity class C Icu=110 kA @ 415 V 3-pole, line protection ETU330, LIG, In=63 A overl

Manufacturer's No: 3VA2163-7HM32-0AA0     Manufacturer: Siemens
circuit breaker 3VA2 IEC Frame 160 breaking capacity class C Icu=110 kA @ 415 V 3-pole, line protection ETU330, LIG, In=63 A overload protection Ir...

Availability On Request

£763.57
  • Circuit Breaker: 3VA2 IEC Frame 160
  • Breaking Capacity: Class C, Icu=110 kA @ 415 V
  • Configuration: 3-pole, line protection
  • Overload Protection: In=63 A, Ir=25 A...63 A
  • Short-Circuit Protection: Ii=1.5...12 x In
  • Ground-Fault Protection: Ig=0.25...1 x In, tg=0.1/0.3s
  • Additional: Nut Keeper Kit included

Accessories

Product video
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA2163-7HM32-0AA0
Net Weight -
2.50kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
110 kiloampere
Adjustment range undelayed short-circuit release -
94 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
25 Ampere
Position of connection for main current circuit -
Front
Power loss -
4 Watt
Rated permanent current Iu -
63 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability On Request

£763.57
