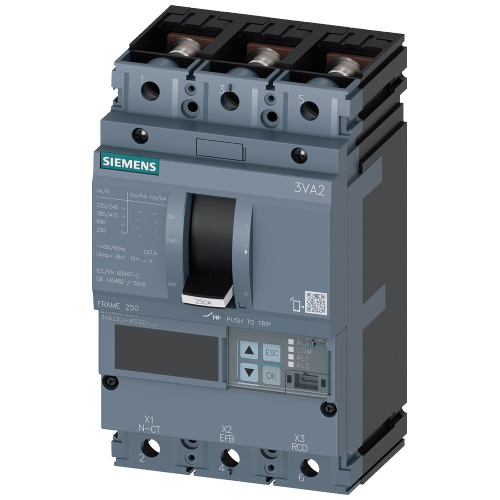

3VA22165KQ320AA0

circuit breaker 3VA2 IEC Frame 250 breaking capacity class M Icu=55 kA @ 415 V 3-pole, line protection ETU860, LSIG, In=160 A over

Manufacturer's No: 3VA2216-5KQ32-0AA0     Manufacturer: Siemens
circuit breaker 3VA2 IEC Frame 250 breaking capacity class M Icu=55 kA @ 415 V 3-pole, line protection ETU860, LSIG, In=160 A overload protection I...

Availability On Request

£1,349.02
  • Circuit breaker 3VA2 IEC Frame 250
  • Breaking capacity: Icu=55 kA @ 415 V
  • 3-pole, line protection with ETU860
  • LSIG (Long-Time, Short-Time, Instantaneous, Ground) protection
  • Overload protection: In=160 A, Ir=63 A...160 A
  • Short-circuit protection: Isd=0.6..10x In, Ii=1.5..12x In
  • Neutral conductor protection
  • Optional external current transformer
  • Ground-fault protection up to 160%
  • Can be switched off with Ig=0.2...1 x In, tg=0.05-0.8s

Read more

  • Nut keeper kit included

Accessories

Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2216-5KQ32-0AA0
Net Weight -
2.50kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range short-term delayed short-circuit release -
96 Ampere
Adjustment range undelayed short-circuit release -
240 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
64 Ampere
Position of connection for main current circuit -
Front
Power loss -
19.7 Watt
Rated permanent current Iu -
160 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability On Request

£1,349.02
