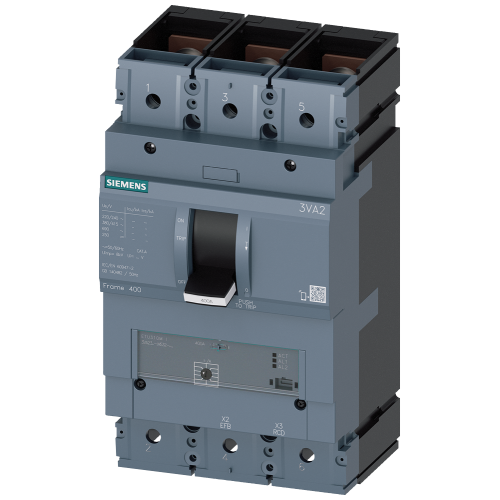

3VA23257MS320AA0

circuit breaker 3VA2 IEC frame 400 breaking capacity class C Icu=110kA @ 415V 3-pole, starter protec

Manufacturer's No: 3VA2325-7MS32-0AA0     Manufacturer: Siemens
circuit breaker 3VA2 IEC frame 400 breaking capacity class C Icu=110kA @ 415V 3-pole, starter protec

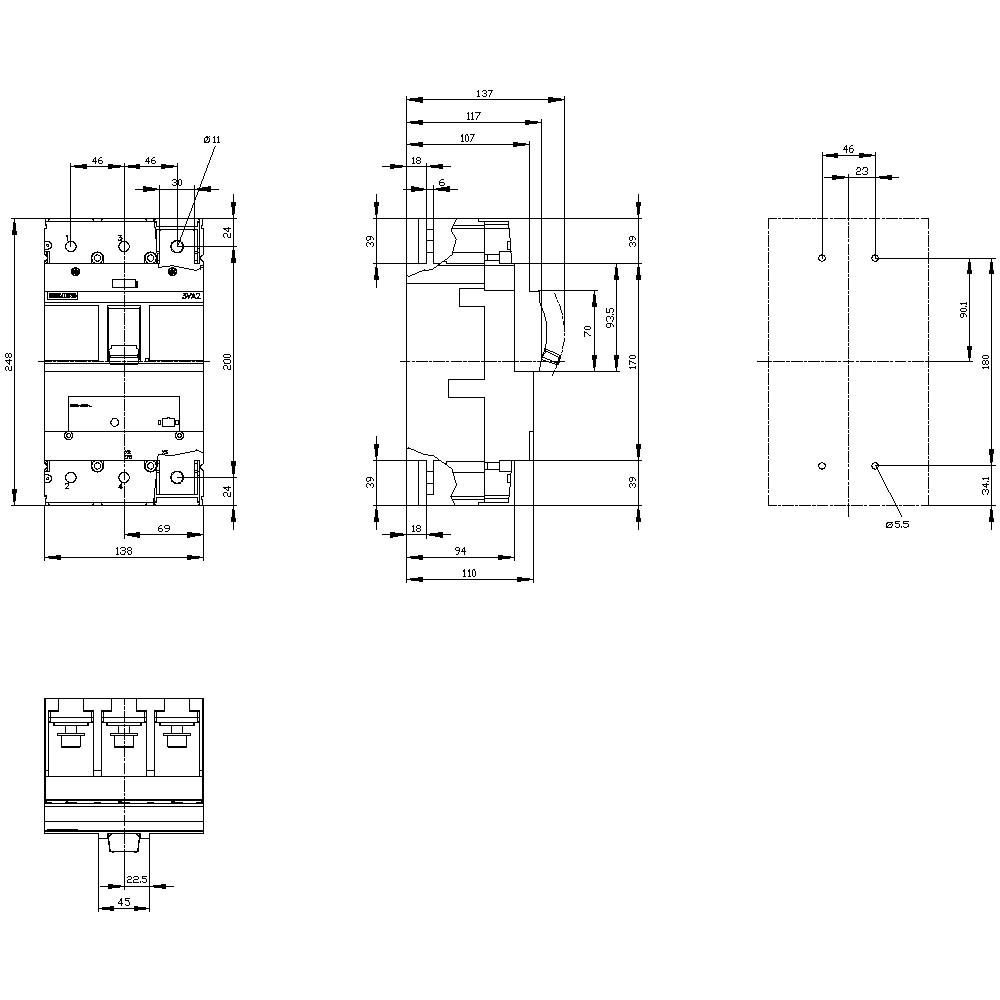

View 3D

Availability Back Order

£1,449.56
  • Circuit breaker 3VA2 IEC Frame 400
  • Breaking capacity class C: Icu = 110 kA @ 415 V

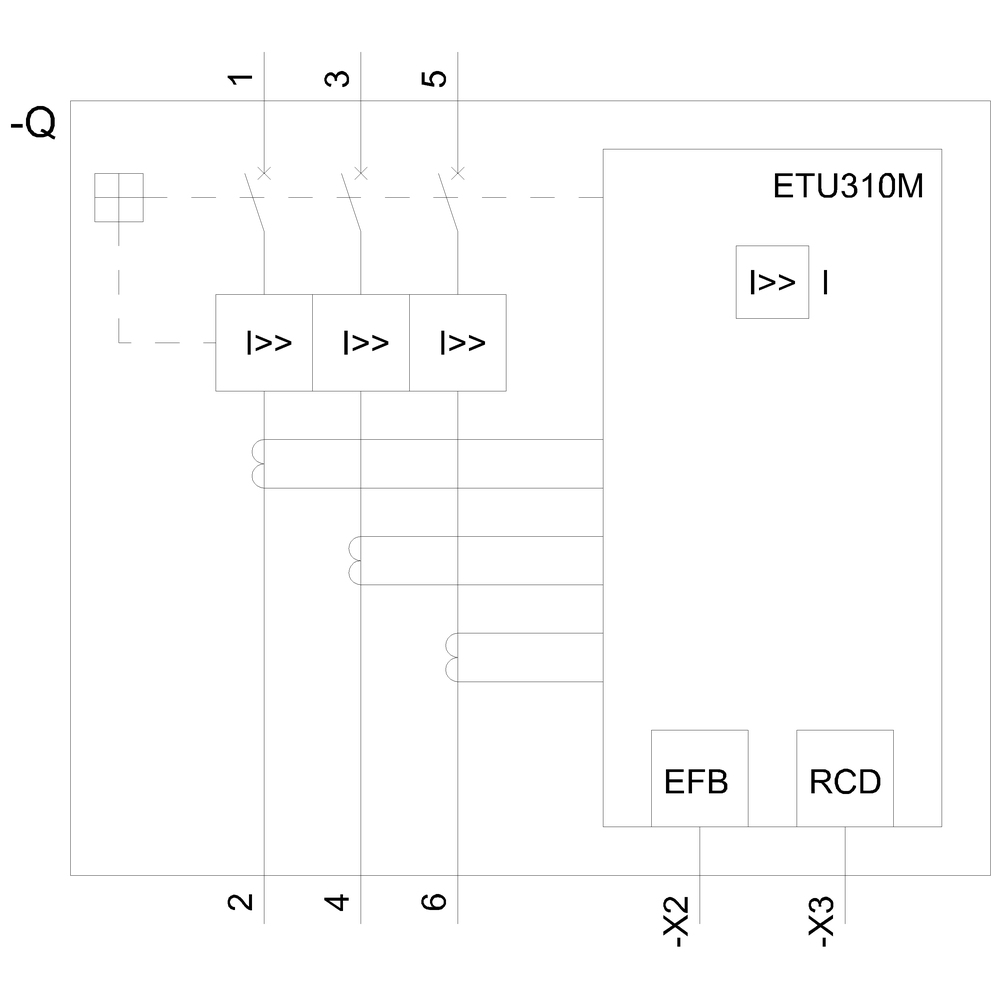

  • 3-pole with starter protection ETU310M
  • Rated current: In = 250 A
  • Short-circuit protection: Ii = 3-15 x In
  • Nut keeper kit included
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2325-7MS32-0AA0
Net Weight -
4.70kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Overload release current setting -
- Ampere
Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
110 kiloampere
Adjustment range undelayed short-circuit release -
750 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Position of connection for main current circuit -
Front
Power loss -
37.5 Watt
Rated permanent current Iu -
250 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability Back Order

£1,449.56
