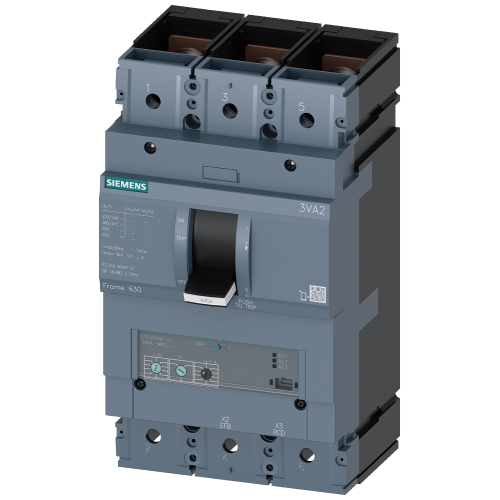

3VA24405MN320AA0

circuit breaker 3VA2 IEC frame 630 breaking capacity class M Icu=55kA @ 415V 3-pole, motor protectio

Manufacturer's No: 3VA2440-5MN32-0AA0     Manufacturer: Siemens
circuit breaker 3VA2 IEC frame 630 breaking capacity class M Icu=55kA @ 415V 3-pole, motor protectio

View 3D

Availability Back Order

£1,755.14
  • Circuit breaker 3VA2 IEC Frame 630
  • Breaking capacity class M: Icu = 55 kA @ 415 V
  • 3-pole with motor protection ETU350M, LSI
  • Rated current: In = 400 A
  • Overload protection: Ir = 160 A...400 A
  • Short-circuit protection: Isd = 3...15 x Ir, Ii = 15 x In
  • Nut keeper kit included
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2440-5MN32-0AA0
Net Weight -
4.73kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range short-term delayed short-circuit release -
480 Ampere
Adjustment range undelayed short-circuit release -
6000 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
160 Ampere
Position of connection for main current circuit -
Front
Power loss -
63.5 Watt
Rated permanent current Iu -
400 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability Back Order

£1,755.14
