3VA24635JQ420AA0

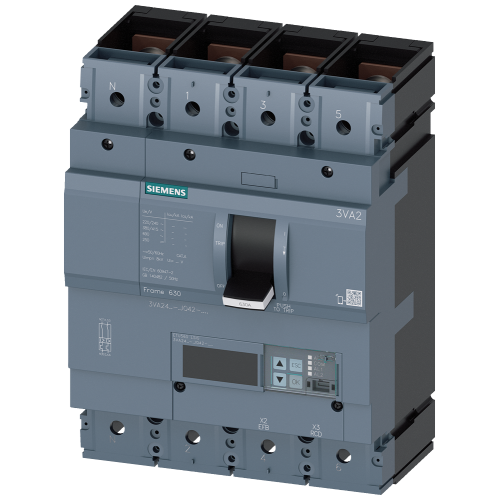

circuit breaker 3VA2 IEC Frame 630 breaking capacity class M Icu=55 kA @ 415 V 4-pole, line protection ETU560, LSIG, In=630 A over

Manufacturer's No: 3VA2463-5JQ42-0AA0     Manufacturer: Siemens
circuit breaker 3VA2 IEC Frame 630 breaking capacity class M Icu=55 kA @ 415 V 4-pole, line protection ETU560, LSIG, In=630 A overload protection I...

Availability In Stock

£2,808.65
  • Circuit Breaker: 3VA2 IEC Frame 630
  • Breaking Capacity: Icu=55 kA @ 415 V
  • Configuration: 4-pole, line protection
  • Overload Protection: In=630 A, Ir=250 A...630 A
  • Short-Circuit Protection: Isd=0.6..9x In, Ii=1.5..9x In
  • Neutral Conductor Protection: Adjustable (OFF, up to 100%)
  • Ground-Fault Protection: Ig=0.2...1 x In, tg=0.05-0.8s
  • Additional: LSIG, ETU560
  • Nut Keeper Kit included

Accessories

Product video
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA2463-5JQ42-0AA0
Net Weight -
6.70kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range short-term delayed short-circuit release -
378 Ampere
Adjustment range undelayed short-circuit release -
945 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
252 Ampere
Position of connection for main current circuit -
Front
Power loss -
162 Watt
Rated permanent current Iu -
630 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability In Stock

£2,808.65
