3VA27165AD030AA0

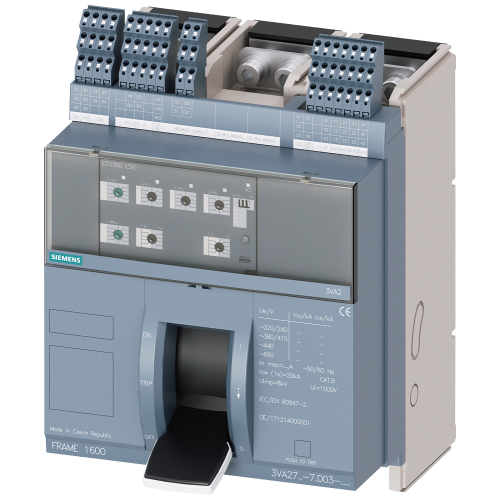

MCCB 3VA27 640-1600A 3P 55KA ETU360

Manufacturer's No: 3VA2716-5AD03-0AA0     Manufacturer: Siemens
MCCB 3VA27 640-1600A 3P 55KA ETU360

Availability On Request

£5,149.17
  • Fixed-mounted molded case circuit breaker with handle frame 1600
  • 3-pole ETU360 with LSIG and In=1600A
  • Icu=55kA @ 415V
  • Trip alarm switch S24 included
  • N conductor protection adjustable with external CT
  • Ground-fault protection up to 200%
  • Rotary coding switch with Ir=640-1600A
  • Short-circuit delay settings Isd=1-10xIn
  • Instantaneous short-circuit protection Ig=0.1-1 x In
  • Time delay settings tg=0.1-0.8s

Read more

  • Nut keeper kit included
  • No communication connection or measurement function
  • Mechanical trip unit with no additional alarm switch assembly
  • Does not include 1st or 2nd auxiliary release
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2716-5AD03-0AA0
Net Weight -
21.89kg

Additional Product Information

Commodity Code -
85363090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Overload release current setting -
640 Ampere
Rated voltage -
690 Volt
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range short-term delayed short-circuit release -
1600 Ampere
Adjustment range undelayed short-circuit release -
2400 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Number of auxiliary contacts as change-over contact -
4
Number of poles -
3
Power loss -
231 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of electrical connection of main circuit -
Rail connection

Availability On Request

£5,149.17
