3VA51706ED111AA0

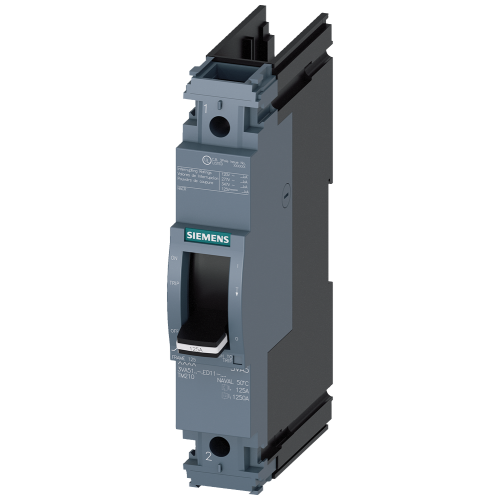

Circuit breaker 3VA5 UL frame 125 breaking capacity class H 50 kA @ 277 V 1-pole

Manufacturer's No: 3VA5170-6ED11-1AA0     Manufacturer: Siemens
Circuit breaker 3VA5 UL frame 125 breaking capacity class H 50 kA @ 277 V 1-pole

Availability On Request

£166.58
  • Circuit breaker 3VA5 UL Frame 125
  • Breaking capacity: 50 kA @ 277 V
  • 1-pole, line protection TM210
  • Overload protection: In=70 A
  • Short-circuit protection: Ir=70 A, Ii=10 x In
  • UL 489 SB (naval)
  • Operating temperature: 50°C
  • Suitable for 125A applications

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5170-6ED11-1AA0
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
- kiloampere
Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Position of connection for main current circuit -
Other
Type of electrical connection of main circuit -
Other
Adjustment range undelayed short-circuit release -
700 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
1
Overload release current setting -
70 Ampere
Power loss -
6.1 Watt
Rated permanent current Iu -
70 Ampere
Rated voltage -
415 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever

Availability On Request

£166.58
