3VA61107HN310AA0

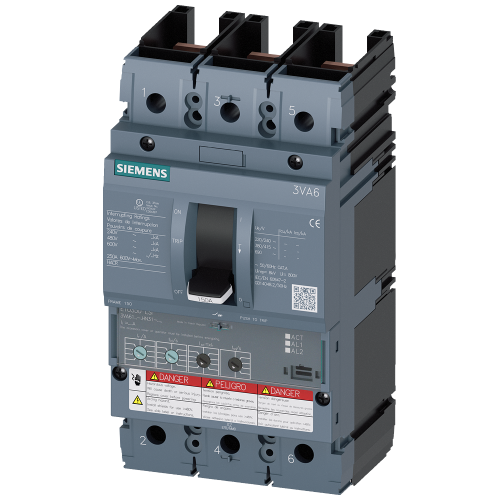

Circuit breaker 3VA6 UL frame 150 breaking capacity class C 100 kA @ 480 V 3-pole

Manufacturer's No: 3VA6110-7HN31-0AA0     Manufacturer: Siemens
Circuit breaker 3VA6 UL frame 150 breaking capacity class C 100 kA @ 480 V 3-pole

Availability On Request

£691.30
  • Circuit breaker 3VA6 UL Frame 150
  • Breaking capacity: 100 kA @ 480 V
  • 3-pole, line protection
  • Overload protection: In=100 A, Ir=40 A...100 A
  • Short-circuit protection: Isd=1.5...10 x Ir
  • Instantaneous short-circuit protection: Ii=12 x In

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA6110-7HN31-0AA0
Net Weight -
2.50kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Position of connection for main current circuit -
Other
Type of electrical connection of main circuit -
Other
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
110 kiloampere
Adjustment range short-term delayed short-circuit release -
150 Ampere
Adjustment range undelayed short-circuit release -
1200 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
40 Ampere
Power loss -
13 Watt
Rated permanent current Iu -
100 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
