3VA61157HM410AA0

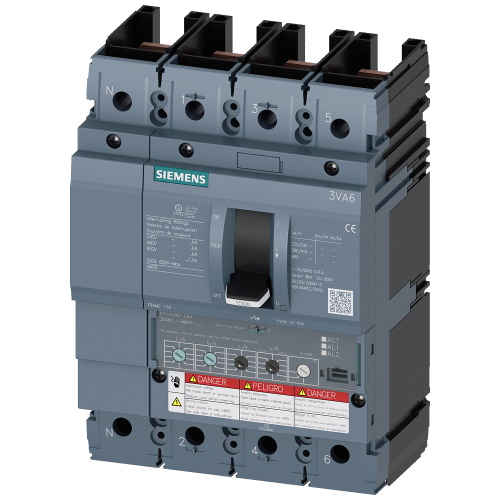

Circuit breaker 3VA6 UL frame 150 breaking capacity class C 100 kA @ 480 V 4-pole

Manufacturer's No: 3VA6115-7HM41-0AA0     Manufacturer: Siemens
Circuit breaker 3VA6 UL frame 150 breaking capacity class C 100 kA @ 480 V 4-pole

Availability On Request

£1,514.86
  • Circuit Breaker Model: 3VA6 UL Frame 150
  • Breaking Capacity: 100 kA @ 480 V, Class C
  • Configuration: 4-pole
  • Line Protection: ETU330
  • Rated Current: In=150 A
  • Overload Protection: Ir=60 A...150 A
  • Short-Circuit Protection: Ii=1.5...10 x In
  • Neutral Conductor Protection: Adjustable (OFF, 100%)
  • Ground-Fault Protection: Ig=0.2...1 x In, tg=0.1/0.3s (without connection)

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA6115-7HM41-0AA0
Net Weight -
3.20kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Position of connection for main current circuit -
Other
Type of electrical connection of main circuit -
Other
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
110 kiloampere
Adjustment range undelayed short-circuit release -
225 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
60 Ampere
Power loss -
29 Watt
Rated permanent current Iu -
150 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever

Availability On Request

£1,514.86
