3VA64607JT410AA0

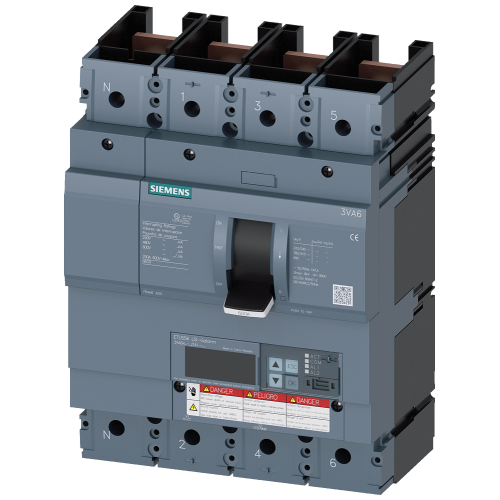

Circuit breaker 3VA6 UL frame 600 breaking capacity class C 100 kA @ 480 V 4-pole

Manufacturer's No: 3VA6460-7JT41-0AA0     Manufacturer: Siemens
Circuit breaker 3VA6 UL frame 600 breaking capacity class C 100 kA @ 480 V 4-pole

Availability On Request

£3,598.76
  • Circuit breaker model: 3VA6 UL Frame 600
  • Breaking capacity: 100 kA @ 480 V, class C
  • Configuration: 4-pole, line protection
  • Overload protection: In=600 A, Ir=240 A...600 A
  • Short-circuit protection: Isd=0.6..9x In, Ii=1.5..9x In
  • Neutral conductor protection: Adjustable (up to 100%)
  • Ground fault alarm: Signaled via EFB300 or COM without connection

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA6460-7JT41-0AA0
Net Weight -
6.90kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Position of connection for main current circuit -
Other
Type of electrical connection of main circuit -
Other
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
110 kiloampere
Adjustment range short-term delayed short-circuit release -
360 Ampere
Adjustment range undelayed short-circuit release -
900 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
250 Ampere
Power loss -
151 Watt
Rated permanent current Iu -
600 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
