3VL25061PE300AA0

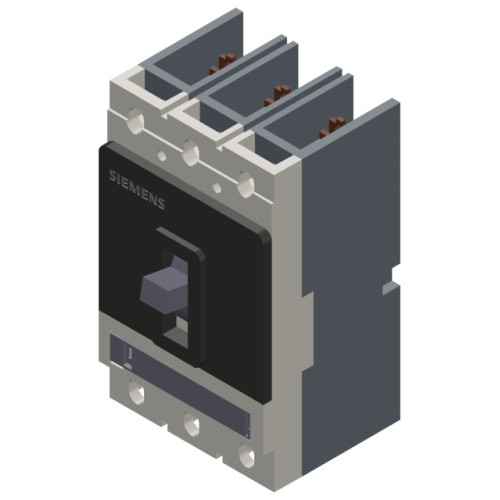

circuit breaker VL150 UL type DG (cat no. NDK3T060) non-interchangeable frame, with circuit breaker approval acc. to UL 489 standa

Manufacturer's No: 3VL2506-1PE30-0AA0     Manufacturer: Siemens
circuit breaker VL150 UL type DG (cat no. NDK3T060) non-interchangeable frame, with circuit breaker approval acc. to UL 489 standard breaking capac...

Availability On Request

POA
  • Circuit breaker VL150 UL type DG (cat no. NDK3T060)
  • Non-interchangeable frame
  • UL 489 standard approval
  • Breaking capacity: 35KA@480V, 18KA@600/347V
  • 3-pole
  • NEMA rating
  • Molded case circuit breaker
  • Electronic Trip Unit ETU, LSI
  • Thermal setting: 40°C
  • Rated current: 60A

Read more

  • Short-circuit protection
  • Ir: 30-60A
  • Line protection
  • No connection accessories or auxiliary/alarm switch included
  • Spare part for replacement usage only

Follow-up article



Product

Manufacturer Material ID -
3VL2506-1PE30-0AA0
Net Weight -
2.40kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Suitable for DIN rail (top hat rail) mounting -

Availability On Request

POA
