3VL27161EE430AA0

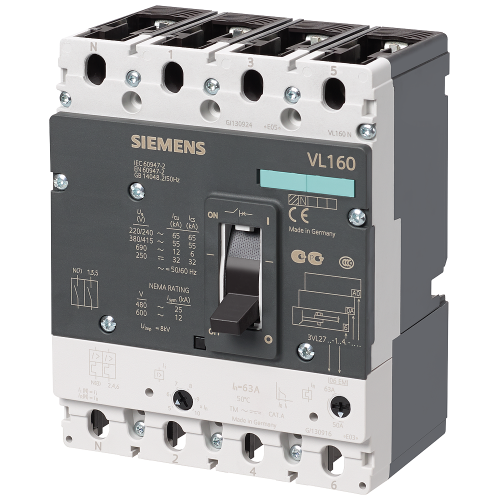

circuit breaker VL160N standard breaking capacity Icu=55kA, 415V AC 4-pole, non-auto. air circ. br. Trip Unit magnetic In=160A,

Manufacturer's No: 3VL2716-1EE43-0AA0     Manufacturer: Siemens
circuit breaker VL160N standard breaking capacity Icu=55kA, 415V AC 4-pole, non-auto. air circ. br.   Trip Unit magnetic In=160A, rated current II=...

Availability Back Order

£1,057.97
  • Circuit breaker VL160N
  • Standard breaking capacity: Icu = 55kA, 415V AC
  • 4-pole, non-automatic air circuit breaker
  • Trip unit: Magnetic In = 160A, rated current II = 2500A
  • Short-circuit protection without auxiliary release or alarm switch
  • Spare part for replacement use only

Follow-up article



Product

Manufacturer Material ID -
3VL2716-1EE43-0AA0
Net Weight -
3.40kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Power loss -
40 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Type of electrical connection of main circuit -
Frame clamp

Availability Back Order

£1,057.97
