3VL31253KN300AA0

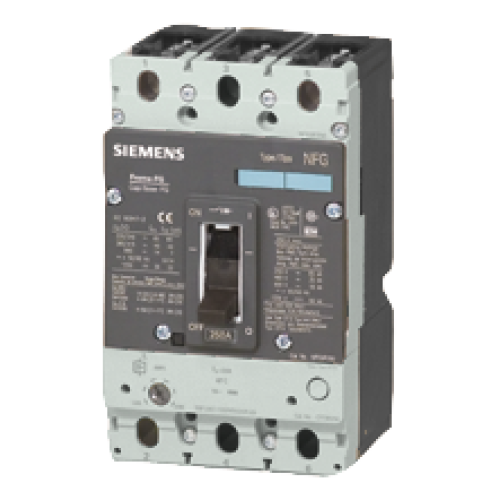

circuit breaker VL250 UL; type FG (cat no. LFX3B250) non-interchangeable frame, with circuit breaker approval acc. to UL 489 very

Manufacturer's No: 3VL3125-3KN30-0AA0     Manufacturer: Siemens
circuit breaker VL250 UL; type FG (cat no. LFX3B250) non-interchangeable frame, with circuit breaker approval acc. to UL 489 very high breaking cap...

Availability Back Order

£2,796.49
  • Circuit breaker VL250 UL
  • Type FG, cat no. LFX3B250
  • Non-interchangeable frame
  • UL 489 approved
  • Very high breaking capacity: 100kA/480V
  • 3-pole, NEMA rating
  • Molded case circuit breaker
  • Electronic Trip Unit TM, LI TA=40°C
  • Rated current In=250A
  • Short-circuit protection IR=250A

Read more

  • Electronic Trip Unit for line protection
  • No connection accessories included
  • No auxiliary release or alarm switch
  • Spare part for replacement usage only

Follow-up article



Product

Manufacturer Material ID -
3VL3125-3KN30-0AA0
Net Weight -
2.30kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Power loss -
80 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
100 kiloampere
Suitable for DIN rail (top hat rail) mounting -

Availability Back Order

£2,796.49
