3VL35251PE300AA0

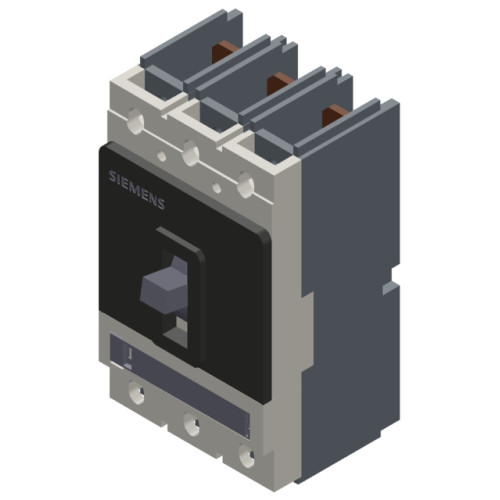

circuit breaker VL250 UL type FG (cat no. NFK3T250) non-interchangeable frame, with circuit breaker approval acc. to UL 489 standa

Manufacturer's No: 3VL3525-1PE30-0AA0     Manufacturer: Siemens
circuit breaker VL250 UL type FG (cat no. NFK3T250) non-interchangeable frame, with circuit breaker approval acc. to UL 489 standard breaking capac...

Availability On Request

POA
  • Circuit breaker VL250 UL type FG (cat no. NFK3T250)
  • Non-interchangeable frame
  • Approval acc. to UL 489 standard
  • Breaking capacity: 35KA@480V, 18KA@600/347V
  • 3-pole NEMA rating
  • Electronic Trip Unit ETU, LSI TA=40°C In=250A
  • Rated current ISD=1.5-10xIR, II=11xIN
  • Short-circuit protection IR=125-250A
  • Electron. Trip Unit for line protection
  • No connection accessories or auxiliary/alarm switch included

Read more

  • Spare part for replacement usage only

Follow-up article



Product

Manufacturer Material ID -
3VL3525-1PE30-0AA0
Net Weight -
2.50kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Power loss -
60 Watt
Suitable for DIN rail (top hat rail) mounting -

Availability On Request

POA
