3VL35252PB300AA0

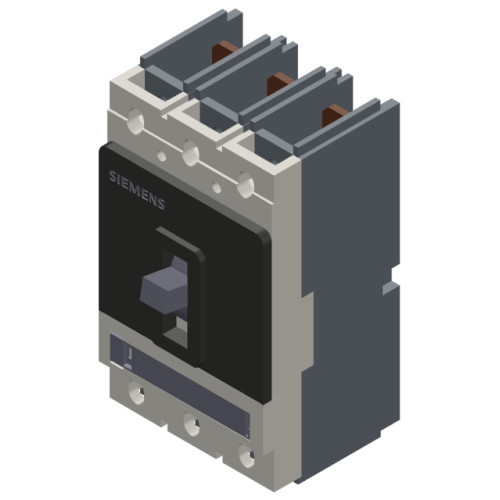

circuit breaker VL250 UL type FG (cat no. HFK3R250) non-interchangeable frame, with circuit breaker approval acc. to UL 489 high b

Manufacturer's No: 3VL3525-2PB30-0AA0     Manufacturer: Siemens
circuit breaker VL250 UL type FG (cat no. HFK3R250) non-interchangeable frame, with circuit breaker approval acc. to UL 489 high breaking capacity ...

Availability On Request

POA
  • Circuit breaker VL250 UL type FG (cat no. HFK3R250)
  • Non-interchangeable frame
  • UL 489 approved
  • High breaking capacity: 65KA@480V, 18KA@600/347V
  • 3-pole
  • Electronic Trip Unit ETU, LI TA=40°C, In=250A
  • Rated current II=1.25-11 x IN
  • Short-circuit protection IR=70-250A
  • Electronic Trip Unit for line protection
  • Does not include connection accessories or auxiliary/alarm switch

Read more

  • Spare part for replacement usage only

Follow-up article



Product

Manufacturer Material ID -
3VL3525-2PB30-0AA0
Net Weight -
2.50kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
UNSPSC -
26101109

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Power loss -
60 Watt
Suitable for DIN rail (top hat rail) mounting -

Availability On Request

POA
