3VL41401PE300AA0

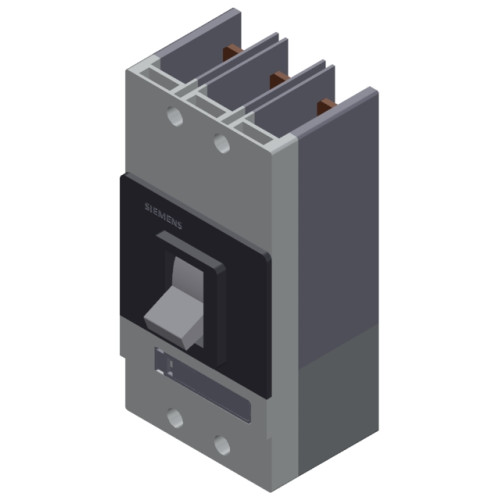

circuit breaker VL400 UL; type JG (cat no. NJX3T400) non-interchangeable frame, with circuit breaker approval acc. to UL 489 stand

Manufacturer's No: 3VL4140-1PE30-0AA0     Manufacturer: Siemens
circuit breaker VL400 UL; type JG (cat no. NJX3T400) non-interchangeable frame, with circuit breaker approval acc. to UL 489 standard breaking capa...

Availability On Request

POA
  • Circuit breaker VL400 UL
  • Type JG (cat no. NJX3T400)
  • Non-interchangeable frame
  • UL 489 standard approval
  • Breaking capacity: 35kA/480V
  • 3-pole NEMA rating
  • Electronic Trip Unit ETU, LSI TA=40°C
  • Rated current: In=400A
  • Short-circuit protection: ISD=1.5 to 10xIR, II=11x
  • Line protection

Read more

  • No connection accessories included
  • No auxiliary release or alarm switch
  • Spare part for replacement usage only

Follow-up article



Product

Manufacturer Material ID -
3VL4140-1PE30-0AA0
Net Weight -
5.90kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Power loss -
90 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
45 kiloampere
Suitable for DIN rail (top hat rail) mounting -

Availability On Request

POA
Sign in or Register for customer prices.
