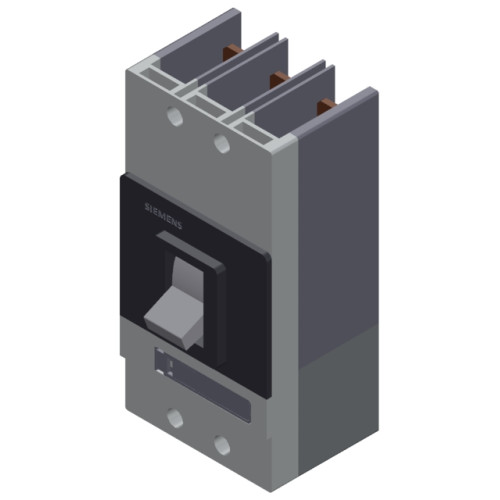

3VL47401DC360AD1

circuit breaker VL400N standard breaking capacity Icu=55kA, 415V AC 3-pole, line protection trip uni

Manufacturer's No: 3VL4740-1DC36-0AD1     Manufacturer: Siemens
circuit breaker VL400N standard breaking capacity Icu=55kA, 415V AC 3-pole, line protection trip uni

Availability On Request

POA
  • Circuit Breaker VL400N
    • Standard breaking capacity: Icu = 55kA, 415V AC
    • 3-pole, line protection trip unit
    • Rated current: In = 400A
    • Overload protection: II = 2000-4000A
    • Short-circuit protection without auxiliary release
  • Auxiliary/Alarm Switch Mounting Kit
    • 2 AUX (1 NO + 1 NC) + 1 AS (1 NO)


Product

Manufacturer Material ID -
3VL4740-1DC36-0AD1
Net Weight -
6.17kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
2
Number of poles -
3
Power loss -
175 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of electrical connection of main circuit -
Screw connection

Availability On Request

POA
