3VL47401SG360AA0

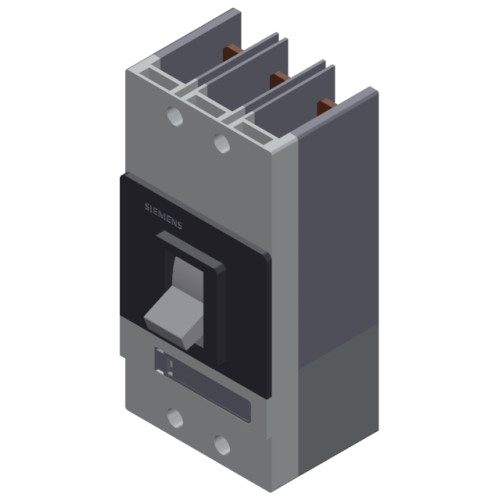

circuit breaker VL400N standard breaking capacity Icu=55kA, 415V AC 3-pole, line protection trip unit ETU22, LSIG 3 phases/3 lines

Manufacturer's No: 3VL4740-1SG36-0AA0     Manufacturer: Siemens
circuit breaker VL400N standard breaking capacity Icu=55kA, 415V AC 3-pole, line protection trip unit ETU22, LSIG 3 phases/3 lines In=400A, rated c...

Availability On Request

POA
  • Circuit breaker model: VL400N
  • Standard breaking capacity: Icu = 55 kA, 415V AC, 3-pole
  • Line protection trip unit: ETU22, LSIG
  • Phases/lines: 3 phases/3 lines
  • Rated current: In = 400A, IR = 160-400A
  • Overload protection: ISD = 1.5 to 10xIR
  • Short-circuit protection: II = 11xIN
  • Auxiliary release: Not included
  • Auxiliary/alarm switch: Not included
  • Spare part for replacement usage only

Follow-up article



Product

Manufacturer Material ID -
3VL4740-1SG36-0AA0
Net Weight -
6.36kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Power loss -
90 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Type of electrical connection of main circuit -
Screw connection

Availability On Request

POA
