3VL48601PB300AA0

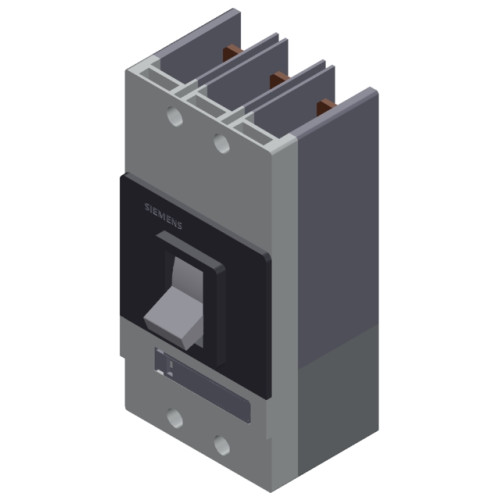

circuit breaker VL400X UL; type LG (cat no. NLK3R600) non-interchangeable frame, with circuit breaker approval acc. to UL 489 stan

Manufacturer's No: 3VL4860-1PB30-0AA0     Manufacturer: Siemens
circuit breaker VL400X UL; type LG (cat no. NLK3R600) non-interchangeable frame, with circuit breaker approval acc. to UL 489 standard breaking cap...

Availability On Request

POA
  • Circuit breaker VL400X UL
  • Type LG (cat no. NLK3R600)
  • Non-interchangeable frame
  • UL 489 standard approval
  • Breaking capacity: 35kA/480V and 18kA/600V
  • 3-pole NEMA rating
  • Trip unit ETU, LI TA=40°C In=600A
  • Rated current II=1.25 to 10xIN
  • Short-circuit protection IR=200-600A
  • ETU for line protection

Read more

  • Spare part for replacement usage only

Follow-up article



Product

Manufacturer Material ID -
3VL4860-1PB30-0AA0
Net Weight -
5.90kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
UNSPSC -
39121521

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Power loss -
160 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
45 kiloampere
Suitable for DIN rail (top hat rail) mounting -

Availability On Request

POA
