3VL57631SB360AA0

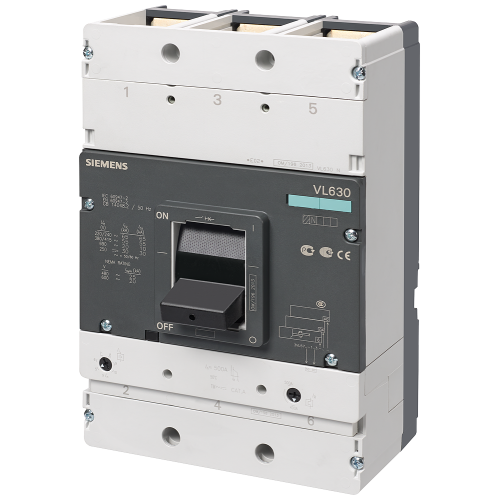

circuit breaker VL630N standard breaking capacity Icu=55kA, 415V AC 3-pole, line protection trip uni

Manufacturer's No: 3VL5763-1SB36-0AA0     Manufacturer: Siemens
circuit breaker VL630N standard breaking capacity Icu=55kA, 415V AC 3-pole, line protection trip uni

Availability Back Order

POA
  • Circuit Breaker Model: VL630N
  • Standard Breaking Capacity: Icu = 55kA
  • Voltage: 415V AC
  • Configuration: 3-pole
  • Line Protection Trip Unit: ETU10
  • Rated Current: IR = 252...630A
  • Overload Protection: II = 1.25 to 10 x IN
  • Short-Circuit Protection
  • No Auxiliary Release or Alarm Switch

Follow-up article



Product

Manufacturer Material ID -
3VL5763-1SB36-0AA0
Net Weight -
9.30kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
MX
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Power loss -
160 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Type of electrical connection of main circuit -
Screw connection

Availability Back Order

POA
