3VL61802PE300AA0

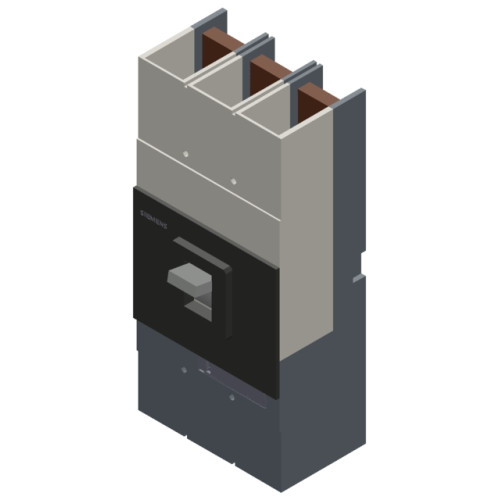

circuit breaker VL800 UL; type MG (cat no. HMX3T800) non-interchangeable frame, with circuit breaker approval acc. to UL 489 high

Manufacturer's No: 3VL6180-2PE30-0AA0     Manufacturer: Siemens
circuit breaker VL800 UL; type MG (cat no. HMX3T800) non-interchangeable frame, with circuit breaker approval acc. to UL 489 high breaking capacity...

Availability Back Order

£5,980.92
  • Circuit breaker VL800 UL, type MG (cat no. HMX3T800)
  • Non-interchangeable frame with UL 489 approval
  • High breaking capacity: 65kA/480V, 3-pole NEMA rating
  • Molded case circuit breaker with trip unit ETU, LSI TA=40°C
  • Rated current: In=800A, ISD=1.5 to 7 xIR, II=8 xIN
  • Short-circuit protection: IR=300-800A
  • ETU for line protection
  • Does not include connection accessories, auxiliary release, or auxiliary/alarm switch
  • Spare part for replacement usage only


Product

Manufacturer Material ID -
3VL6180-2PE30-0AA0
Net Weight -
16.00kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
MX
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Power loss -
250 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
70 kiloampere
Suitable for DIN rail (top hat rail) mounting -

Availability Back Order

£5,980.92
