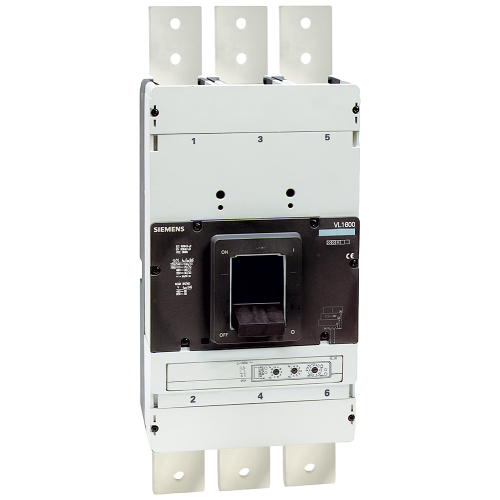

3VL87161DE302KC1

circuit breaker VL1600N standard breaking capacity Icu=55kA, 415V AC 3-pole, non-auto. air circ. br.

Manufacturer's No: 3VL8716-1DE30-2KC1     Manufacturer: Siemens
circuit breaker VL1600N standard breaking capacity Icu=55kA, 415V AC 3-pole, non-auto. air circ. br.

Availability On Request

POA
  • Circuit Breaker Model: VL1600N
  • Standard Breaking Capacity: Icu = 55kA
  • Voltage: 415V AC
  • Configuration: 3-pole, non-automatic
  • Trip Unit: Magnetic, In = 1600A
  • Rated Current: Ii = 14400A
  • Short-Circuit Protection
  • Undervoltage Release: 440-480V AC
  • Auxiliary Switch Mounting Kit: 4 AUX (2 NO + 2 NC)


Product

Manufacturer Material ID -
3VL8716-1DE30-2KC1
Net Weight -
32.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
MX
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of poles -
3
Power loss -
260 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Suitable for DIN rail (top hat rail) mounting -
With integrated under voltage release -

Availability On Request

POA
