3VT17102EC460AA0

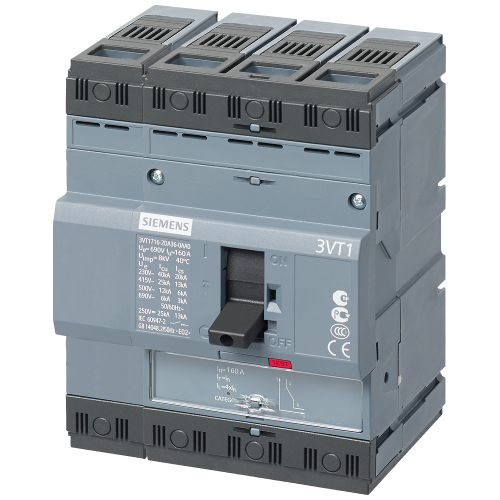

circuit breaker 3VT1 standard breaking capacity Icu=25kA, 415V AC 4-pole, line protection trip unit

Manufacturer's No: 3VT1710-2EC46-0AA0     Manufacturer: Siemens
circuit breaker 3VT1 standard breaking capacity Icu=25kA, 415V AC 4-pole, line protection trip unit

Availability On Request

POA
  • Circuit Breaker Model: 3VT1
  • Standard Breaking Capacity: Icu = 25kA, 415V AC
  • Configuration: 4-pole
  • Line Protection Trip Unit: TM, LI
  • Rated Current: In = 100A
  • Overload Protection: IR = 80-100A
  • Short-Circuit Protection: II = 500-1000A
  • N Conductor Unprotected
  • Auxiliary Release: Not included
  • Auxiliary/Alarm Switch: Not included


Product

Manufacturer Material ID -
3VT1710-2EC46-0AA0
Net Weight -
1.32kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Rated voltage -
- Volt
Adjustment range short-term delayed short-circuit release -
- Ampere
Device construction -
UN
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated permanent current Iu -
100 Ampere
Number of poles -
4
Overload release current setting -
80 Ampere
Number of auxiliary contacts as change-over contact -
0
Degree of protection (IP) -
IP40
Position of connection for main current circuit -
Front side
Type of electrical connection of main circuit -
Frame clamp
Type of control element -
Rocker lever
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
25 kiloampere
Adjustment range undelayed short-circuit release -
500 Ampere
Suitable for DIN rail (top hat rail) mounting -
Motor drive optional -
DIN rail (top hat rail) mounting optional -
Complete device with protection unit -
