3KD02422KG203

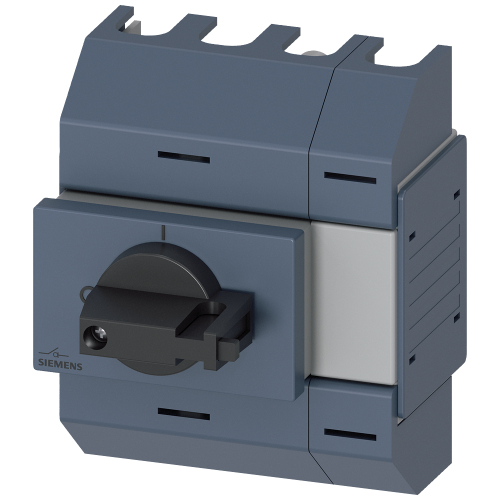

Switch disconnector 32A, size 01, 4-pole Front operating mechanism center Complete unit with direct operating mechanism gray Box t

Manufacturer's No: 3KD0242-2KG20-3     Manufacturer: Siemens
Switch disconnector 32A, size 01, 4-pole Front operating mechanism center Complete unit with direct operating mechanism gray Box terminal

Availability On Request

£70.80
  • Switch disconnector: 32A
  • Size: 01
  • Number of poles: 4
  • Front operating mechanism located at the center
  • Complete unit with direct operating mechanism
  • Color: Gray
  • Box terminal included

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3KD0242-2KG20-3
Net Weight -
0.44kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
32151705

Technical Specification

Colour control element -
Grey
Degree of protection (IP), front side -
IP10
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of poles -
4
Number of switches -
1
Rated operation power at AC-23, 400 V -
15 Kilowatt
Rated permanent current at AC-21, 400 V -
32 Ampere
Rated permanent current at AC-23, 400 V -
32 Ampere
Rated permanent current Iu -
32 Ampere
Rated short-time withstand current lcw -
1.26 kiloampere
Suitable for floor mounting -
Type of control element -
Short thumb-grip
Type of electrical connection of main circuit -
Frame clamp
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability On Request

£70.80
