3KD03322LG203

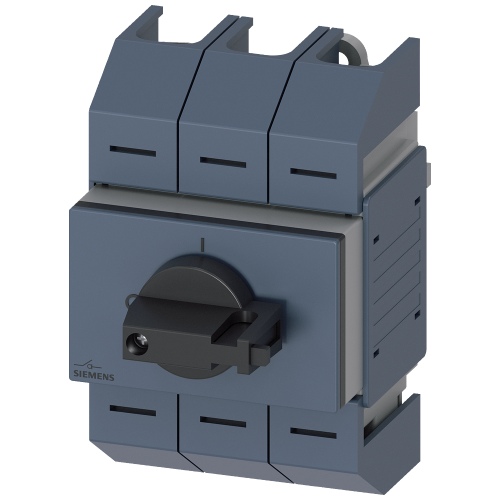

Switch disconnector 63A, size 02, 3-pole Front operating mechanism center Complete unit with direct operating mechanism gray Box t

Manufacturer's No: 3KD0332-2LG20-3     Manufacturer: Siemens
Switch disconnector 63A, size 02, 3-pole Front operating mechanism center Complete unit with direct operating mechanism gray Box terminal

Availability On Request

£71.98
  • Switch disconnector
    • Current rating: 63A
    • Size: 02
    • Number of poles: 3
    • Front operating mechanism located at the center
    • Complete unit with direct operating mechanism
    • Color: Gray
    • Box terminal included

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3KD0332-2LG20-3
Net Weight -
0.44kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
32151705

Technical Specification

Colour control element -
Grey
Degree of protection (IP), front side -
IP10
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of poles -
3
Number of switches -
1
Rated operation power at AC-23, 400 V -
30 Kilowatt
Rated permanent current at AC-21, 400 V -
63 Ampere
Rated permanent current at AC-23, 400 V -
63 Ampere
Rated permanent current Iu -
63 Ampere
Rated short-time withstand current lcw -
2.5 kiloampere
Suitable for floor mounting -
Type of control element -
Short thumb-grip
Type of electrical connection of main circuit -
Frame clamp
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability On Request

£71.98
