3KD05332LG203

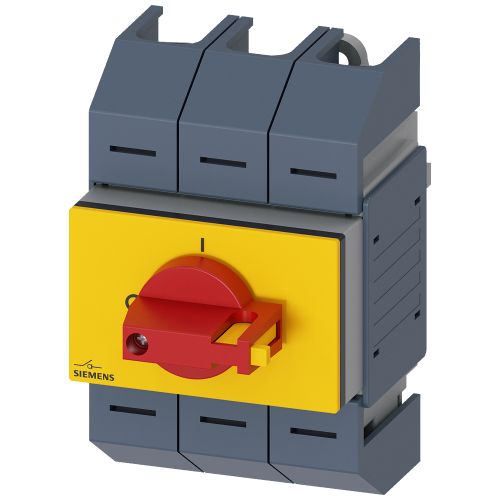

Switch disconnector 100A, size 02, 3-pole Front operating mechanism center Complete unit with direct operating mechanism red/yello

Manufacturer's No: 3KD0533-2LG20-3     Manufacturer: Siemens
Switch disconnector 100A, size 02, 3-pole Front operating mechanism center Complete unit with direct operating mechanism red/yellow Box terminal

Availability Back Order

£102.07
  • Switch disconnector
    • 100A
    • Size 02
    • 3-pole
    • Front operating mechanism center
    • Complete unit with direct operating mechanism
    • Red/yellow box terminal

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3KD0533-2LG20-3
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39122221

Technical Specification

Degree of protection (IP), front side -
IP10
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of poles -
3
Number of switches -
1
Rated operation power at AC-23, 400 V -
45 Kilowatt
Rated permanent current at AC-21, 400 V -
100 Ampere
Rated permanent current at AC-23, 400 V -
80 Ampere
Rated permanent current Iu -
100 Ampere
Rated short-time withstand current lcw -
2.5 kiloampere
Suitable for floor mounting -
Type of control element -
Short thumb-grip
Type of electrical connection of main circuit -
Frame clamp
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability Back Order

£102.07
