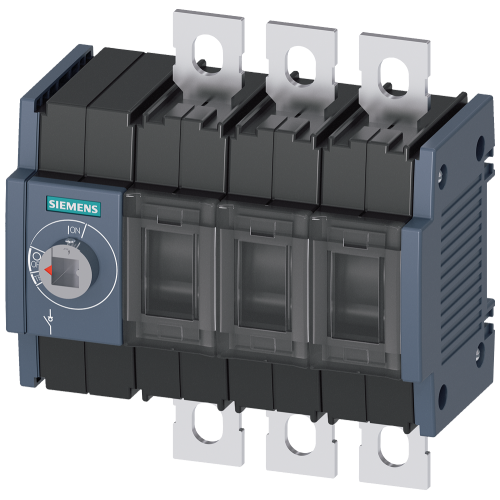

3KD38300NE100

SWITCH-DISCONNECTOR 250A, FRAME SIZE 2, 3-POLE FRONT OPERATING LEFT BASIC UNIT WITHOUT HANDLE FLAT TERMINAL INCL. PHASE BARRIERS

Manufacturer's No: 3KD3830-0NE10-0     Manufacturer: Siemens
SWITCH-DISCONNECTOR 250A, FRAME SIZE 2, 3-POLE FRONT OPERATING LEFT BASIC UNIT WITHOUT HANDLE FLAT TERMINAL INCL. PHASE BARRIERS

Availability In Stock

£182.02
  • Switch-Disconnector
  • 250A
  • Frame Size 2
  • 3-Pole
  • Front Operating Left
  • Basic Unit
  • Flat Terminal
  • Includes Phase Barriers

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3KD3830-0NE10-0
Net Weight -
1.01kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Type of control element -
None
Colour control element -
Other
Suitable for distribution board installation -
Suitable for intermediate mounting -
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Degree of protection (IP), front side -
IP00
Max. rated operation voltage Ue AC -
1000 Volt
Number of auxiliary contacts as change-over contact -
4
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Number of switches -
1
Rated operation power at AC-23, 400 V -
90 Kilowatt
Rated permanent current at AC-21, 400 V -
250 Ampere
Rated permanent current at AC-23, 400 V -
160 Ampere
Rated permanent current Iu -
250 Ampere
Rated short-time withstand current lcw -
4 kiloampere
Suitable for floor mounting -
Switching power at 400 V -
90 Kilowatt
Type of electrical connection of main circuit -
Flat plug-in connection
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -
