3KD54600RE200

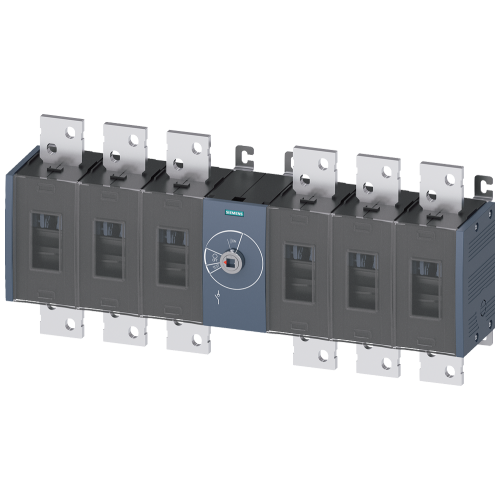

Switch disconnector 1600 A, Size 5, 6-pole DC Front operating mechanism center Basic unit without handle flat terminal

Manufacturer's No: 3KD5460-0RE20-0     Manufacturer: Siemens
Switch disconnector 1600 A, Size 5, 6-pole DC Front operating mechanism center Basic unit without handle flat terminal

Availability On Request

£3,482.51
  • Switch disconnector
  • 1600 A current rating
  • Size 5, 6-pole
  • DC Front operating mechanism center
  • Basic unit without handle
  • Flat terminal

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3KD5460-0RE20-0
Net Weight -
29.56kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Rated short-time withstand current lcw -
- kiloampere
Max. rated operation voltage Ue AC -
- Volt
Rated permanent current at AC-21, 400 V -
- Ampere
Rated permanent current at AC-23, 400 V -
- Ampere
Type of control element -
None
Rated operation power at AC-23, 400 V -
900 Kilowatt
Colour control element -
Other
Device construction -
Built-in device fixed built-in technique
Switching power at 400 V -
400 Kilowatt
Degree of protection (NEMA) -
Other
Degree of protection (IP), front side -
IP00
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
8
Number of auxiliary contacts as normally open contact -
8
Number of poles -
6
Number of switches -
1
Rated permanent current Iu -
1600 Ampere
Suitable for floor mounting -
Type of electrical connection of main circuit -
Flat plug-in connection
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability On Request

£3,482.51
