3LD20842GP21

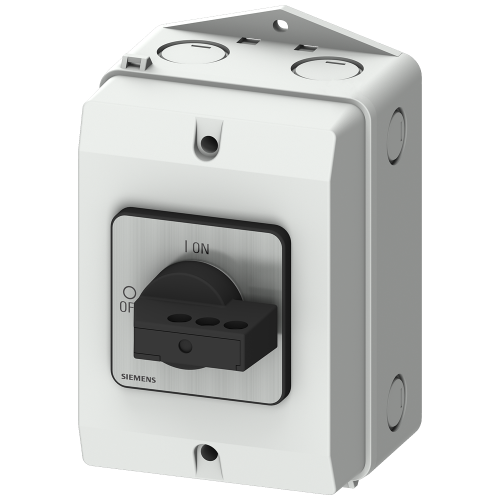

3LD switch disconnector, emergency stop switch, 4-pole, Iu: 16 A, operating power ...

Manufacturer's No: 3LD2084-2GP21     Manufacturer: Siemens
3LD switch disconnector, emergency stop switch, 4-pole, Iu: 16 A, operating power ...

Availability On Request

£69.37
  • Product: SENTRON switch disconnector 3LD
  • Enclosure: Molded-plastic
  • Features: Repair and maintenance switch with EMC plate
  • Configuration: 3-pole
  • Current Rating: Iu 16A
  • Voltage Rating: AC23A 400V at 50/60Hz
  • Power Rating: 7.5kW
  • Compatibility: Frequency converter AC20 400V at 0-550Hz: 4kW
  • Contacts: 1NO + 1NC
  • Operation Time: 20-150ms leading

Read more

  • Cable Entry: Molded-plastic encapsulation for metric cable gland
  • Operation: Knob-operated mechanism
  • Color: Black
  • Locking: Lockable in 0- and I-position
  • Accessories: Includes cable shield clamps

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3LD2084-2GP21
Net Weight -
0.64kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
32151705

Technical Specification

Rated operation power at AC-23, 400 V -
7.5 Kilowatt
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Black
Degree of protection (IP), front side -
IP65
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of poles -
3
Number of switches -
1
Rated operation power at AC-3, 400 V -
6 Kilowatt
Rated permanent current at AC-21, 400 V -
16 Ampere
Rated permanent current at AC-23, 400 V -
16 Ampere
Rated permanent current Iu -
16 Ampere
Rated short-time withstand current lcw -
0.34 kiloampere
Suitable for front mounting centre -
Type of control element -
Toggle
Type of electrical connection of main circuit -
Frame clamp
Version as main switch -
Version as maintenance-/service switch -
