3LD23051TL13

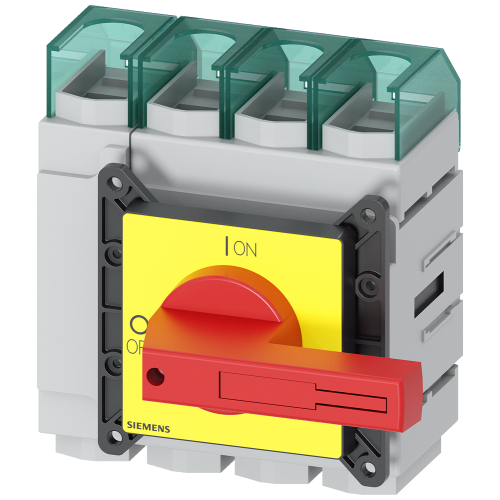

SENTRON, Switch disconnector 3LD, emergency switching-off switch, 4- pole, Iu: 160 A, operating powe

Manufacturer's No: 3LD2305-1TL13     Manufacturer: Siemens
SENTRON, Switch disconnector 3LD, emergency switching-off switch, 4- pole, Iu: 160 A, operating powe

Availability On Request

£340.55
  • Product: SENTRON Switch Disconnector 3LD
  • Type: Emergency switching-off switch
  • Configuration: 4-pole
  • Rated Current: 160 A
  • Operating Power at AC-23 A 400 V: 75 kW
  • Mounting: Front-mounted
  • Operation: Knob-operated mechanism
  • Color: Red/Yellow
  • Handle Mounting: 4-hole

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3LD2305-1TL13
Net Weight -
2.60kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Switching power at 400 V -
- Kilowatt
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Red
Degree of protection (IP), front side -
IP65
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Number of switches -
1
Rated operation power at AC-23, 400 V -
75 Kilowatt
Rated operation power at AC-3, 400 V -
50 Kilowatt
Rated permanent current at AC-21, 400 V -
160 Ampere
Rated permanent current at AC-23, 400 V -
132 Ampere
Rated permanent current Iu -
160 Ampere
Rated short-time withstand current lcw -
4 kiloampere
Suitable for front mounting 4-hole -
Type of control element -
Toggle
Type of electrical connection of main circuit -
Frame clamp
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability On Request

£340.55
