3LD25865VD21

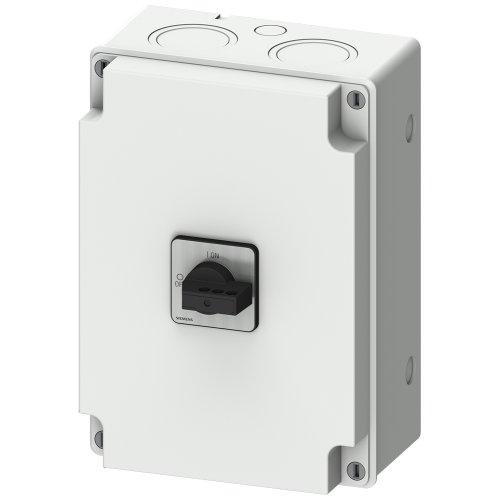

SENTRON switch disconnector 3LD in enclosure, Maintenance and repair switch

Manufacturer's No: 3LD2586-5VD21     Manufacturer: Siemens
SENTRON switch disconnector 3LD in enclosure, Maintenance and repair switch

Availability On Request

£236.64
  • Product: SENTRON switch disconnector 3LD
  • Enclosure: Molded-plastic
  • Iu: 63A
  • AC23A at 400V, 50/60Hz: 22kW
  • Compatible with frequency converter: AC20 at 400V, 0-550Hz: 18.5kW
  • Configuration: 6-pole
  • Contact Configuration: 1NO + 1NC
  • Operation: Knob-operated
  • Encapsulation: Molded-plastic with metric cable gland
  • Features: EMC plate, lockable in 0- and I-position

Read more

  • Additional: Includes cable shield clamps and hose clamps

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3LD2586-5VD21
Net Weight -
2.47kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39122214

Technical Specification

Degree of protection (NEMA) -
UN
Rated operation power at AC-23, 400 V -
22 Kilowatt
Device construction -
Built-in device fixed built-in technique
Colour control element -
Black
Degree of protection (IP), front side -
IP65
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of poles -
6
Number of switches -
1
Rated operation power at AC-3, 400 V -
19 Kilowatt
Rated permanent current at AC-21, 400 V -
63 Ampere
Rated permanent current at AC-23, 400 V -
43 Ampere
Rated permanent current Iu -
63 Ampere
Rated short-time withstand current lcw -
1.26 kiloampere
Suitable for front mounting centre -
Type of control element -
Toggle
Type of electrical connection of main circuit -
Frame clamp
Version as main switch -
Version as maintenance-/service switch -

Availability On Request

£236.64
