3LD52100TL13

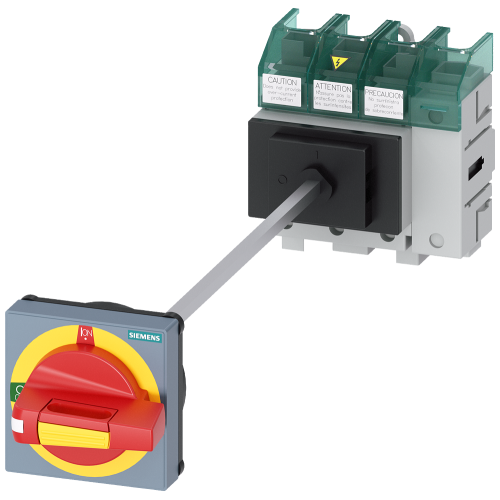

MOLDED CASE SWITCH 3LD5 UL

Manufacturer's No: 3LD5210-0TL13     Manufacturer: Siemens
MOLDED CASE SWITCH 3LD5 UL

Availability On Request

£150.98
  • Molded case switch 3LD5 UL
  • Emergency switching-off
  • 4-pole
  • Certified according to UL489, UL60947-4-1, and IEC60947-3
  • UL: 60A, SCCR 50kA at 480VAC
  • Operating power at 480VAC 3-phase: 40hp
  • IEC: 63A
  • Operating power at AC-23A at 400V: 30kW
  • Floor mounting with door coupling rotary operating mechanism
  • Defeatable emergency switching-off

Read more

  • 4-hole mounting of the handle
  • Includes terminal covers for the infeed side

Selectable mandatory product

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3LD5210-0TL13
Net Weight -
0.78kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39122216

Technical Specification

Colour control element -
Red
Degree of protection (IP), front side -
IP65
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Number of switches -
1
Rated operation power at AC-23, 400 V -
30 Kilowatt
Rated operation power at AC-3, 400 V -
30 Kilowatt
Rated permanent current at AC-21, 400 V -
63 Ampere
Rated permanent current at AC-23, 400 V -
63 Ampere
Rated permanent current Iu -
63 Ampere
Rated short-time withstand current lcw -
2 kiloampere
Suitable for floor mounting -
Suitable for front mounting 4-hole -
Type of control element -
Door coupling rotary drive
Type of electrical connection of main circuit -
Frame clamp
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability On Request

£150.98
