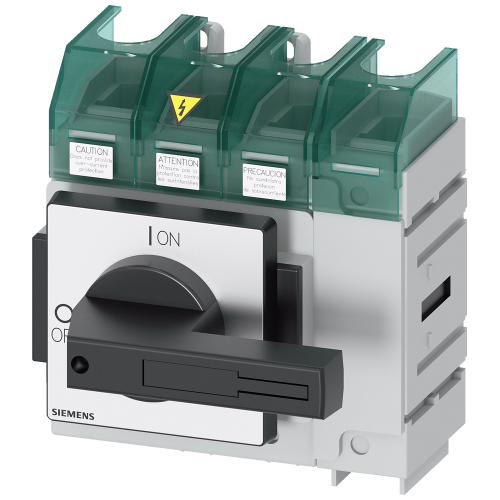

3LD56000TL11

MOLDED CASE SWITCH 3LD5 UL

Manufacturer's No: 3LD5600-0TL11     Manufacturer: Siemens
MOLDED CASE SWITCH 3LD5 UL

Availability On Request

£253.78
  • Molded case switch 3LD5 UL
  • Main switch, 4-pole
  • Certified according to UL489, UL60947-4-1, and IEC60947-3
  • UL: 125A, SCCR 65kA at 480VAC
  • Operating power at 480VAC 3-phase: 75hp
  • IEC: 125A, Operating power at AC-23A at 400V: 55kW
  • Floor mounting with direct handle
  • Color: Black
  • Includes terminal covers for the infeed side

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3LD5600-0TL11
Net Weight -
2.59kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-23, 400 V -
55 Kilowatt
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Black
Degree of protection (IP), front side -
IP00
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Number of switches -
1
Rated operation power at AC-3, 400 V -
55 Kilowatt
Rated permanent current at AC-21, 400 V -
125 Ampere
Rated permanent current at AC-23, 400 V -
125 Ampere
Rated permanent current Iu -
125 Ampere
Rated short-time withstand current lcw -
4 kiloampere
Suitable for floor mounting -
Type of control element -
Toggle
Type of electrical connection of main circuit -
Frame clamp
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -
