3NB11361KK15

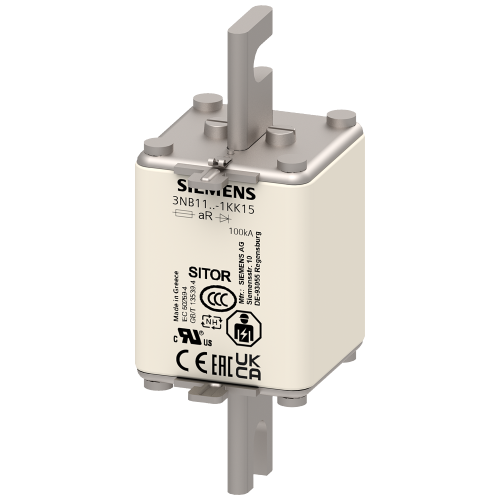

SITOR fuse link 450 A aR 600 V DC/1100 V VSI 750 V DC UL @MBC 5xIn

Manufacturer's No: 3NB1136-1KK15     Manufacturer: Siemens
SITOR fuse link 450 A aR 600 V DC/1100 V VSI 750 V DC UL @MBC 5xIn

Availability On Request

£417.90
  • Fuse size: 1
  • Current rating: 450A
  • Voltage rating: 600V DC / 1100V VSI / 750V DC UL
  • Mounting: MBC 5xIn
  • Connection: Screw connection M10

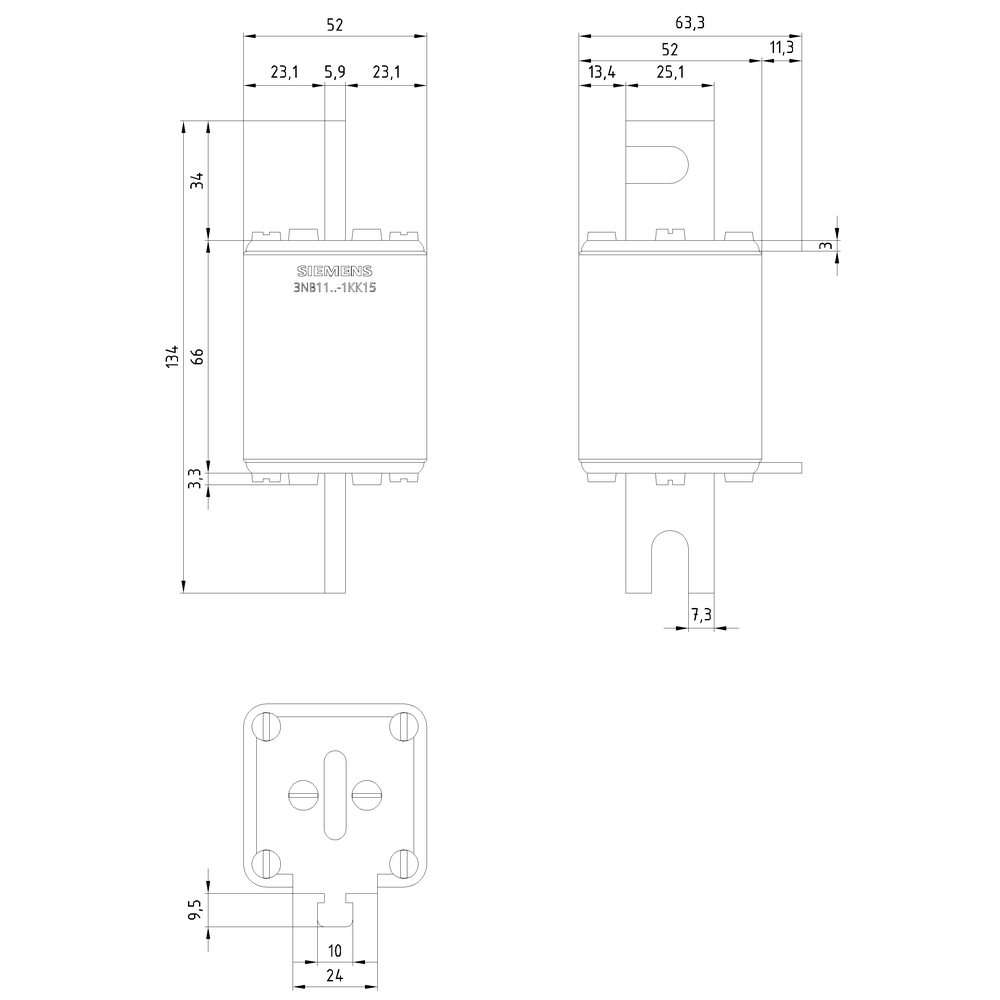

  • Dimensions: 110mm slotted knives
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3NB1136-1KK15
Net Weight -
0.53kg

Additional Product Information

Commodity Code -
85361090
Country of Origin -
GR
UNSPSC -
39121626

Technical Specification

Power loss at rated current -
95 Watt
Rated current -
450 Ampere
Rated voltage DC -
600 Volt
Voltage type -
DC

Availability On Request

£417.90
