3NB11371KK11

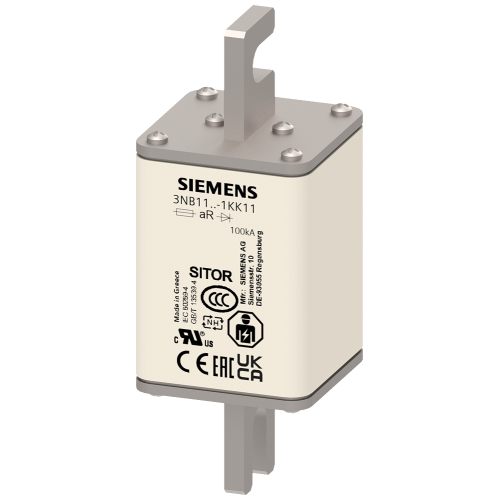

SITOR fuse link 500 A aR 600 V DC/750 V VSI 700 V DC UL @MBC 6xIn

Manufacturer's No: 3NB1137-1KK11     Manufacturer: Siemens
SITOR fuse link 500 A aR 600 V DC/750 V VSI 700 V DC UL @MBC 6xIn

Availability On Request

£401.10
  • Fuse size: 1
  • Current rating: 500A
  • Voltage rating: 600V DC / 750V VSI / 700V DC UL @MBC
  • Connection type: Screw connection M10
  • Blade length: 110mm
  • Blade type: Slotted knives
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3NB1137-1KK11
Net Weight -
0.61kg

Additional Product Information

Commodity Code -
85361090
Country of Origin -
GR
UNSPSC -
39121626

Technical Specification

Power loss at rated current -
105 Watt
Rated current -
500 Ampere
Rated voltage DC -
600 Volt
Voltage type -
DC

Availability On Request

£401.10
