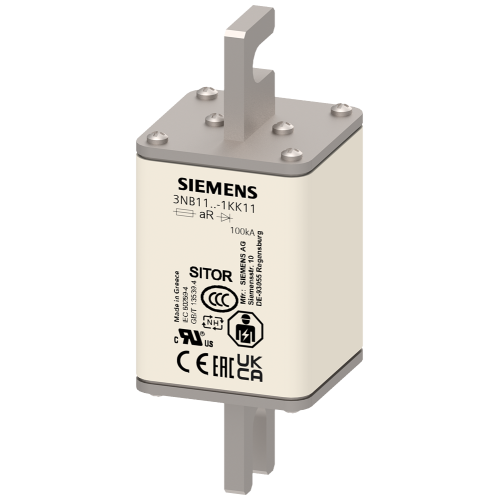

3NB11421KK11

SITOR fuse link 630 A aR 600 V DC/750 V VSI 700 V DC UL @MBC 6xIn

Manufacturer's No: 3NB1142-1KK11     Manufacturer: Siemens
SITOR fuse link 630 A aR 600 V DC/750 V VSI 700 V DC UL @MBC 6xIn

Availability On Request

£422.10
  • Fuse size: 1
  • Current rating: 630A
  • Voltage rating: 600V DC / 750V VSI / 700V DC UL
  • Mounting: MBC 6xIn
  • Connection: Screw connection M10

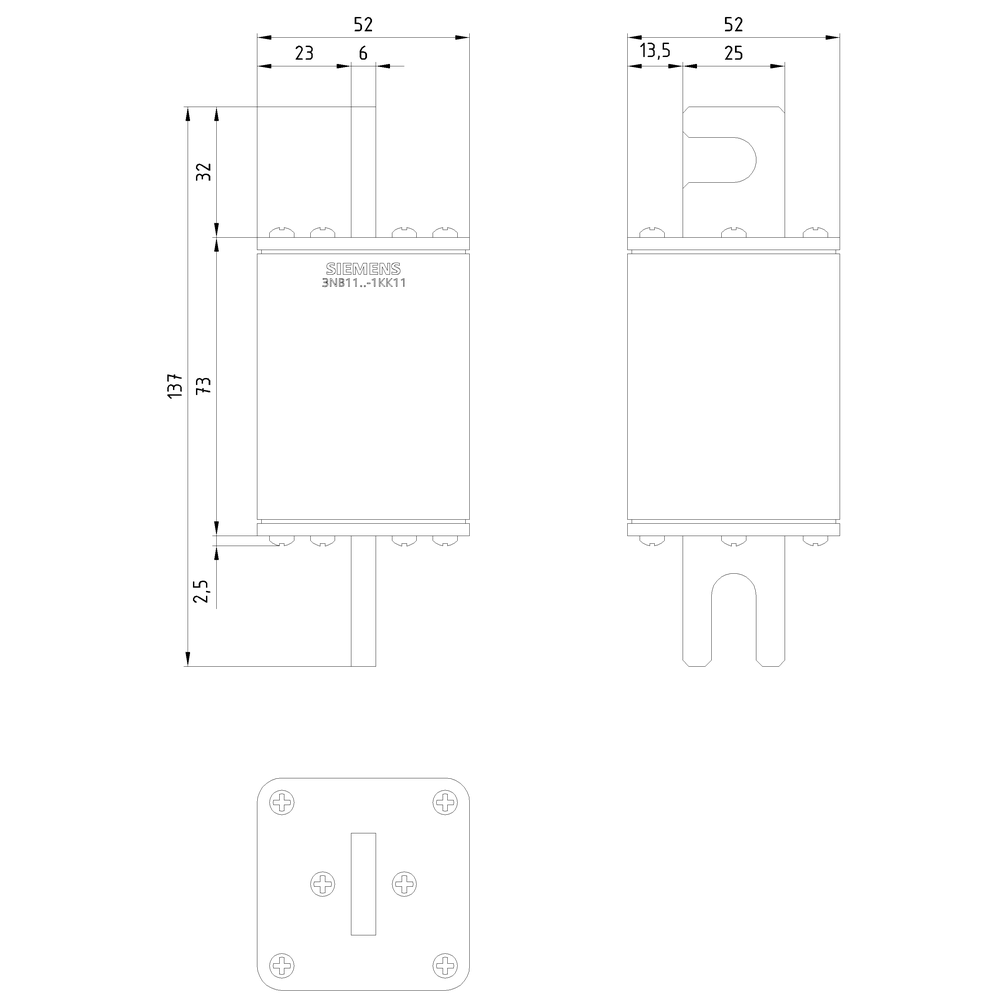

  • Dimensions: 110mm
  • Design: Slotted knives
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3NB1142-1KK11
Net Weight -
0.61kg

Additional Product Information

Commodity Code -
85361090
Country of Origin -
GR
UNSPSC -
39121626

Technical Specification

Power loss at rated current -
127 Watt
Rated current -
630 Ampere
Rated voltage DC -
600 Volt
Voltage type -
DC

Availability On Request

£422.10
