3NB12233KK15

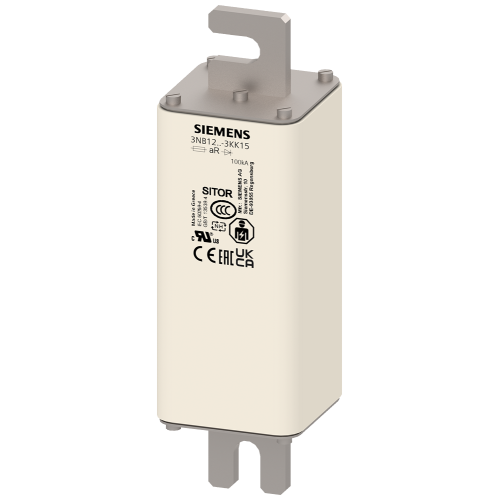

SITOR fuse link 100 A aR 1000 V DC/1250 V VSI 1100 V DC UL @MBC 7xIn

Manufacturer's No: 3NB1223-3KK15     Manufacturer: Siemens
SITOR fuse link 100 A aR 1000 V DC/1250 V VSI 1100 V DC UL @MBC 7xIn

Availability On Request

£443.10
  • Fuse Size: 2
  • Current Rating: 100A
  • Voltage Rating: 1000V DC / 1250V VSI / 1100V DC UL @MBC
  • Connection Type: Screw connection M10

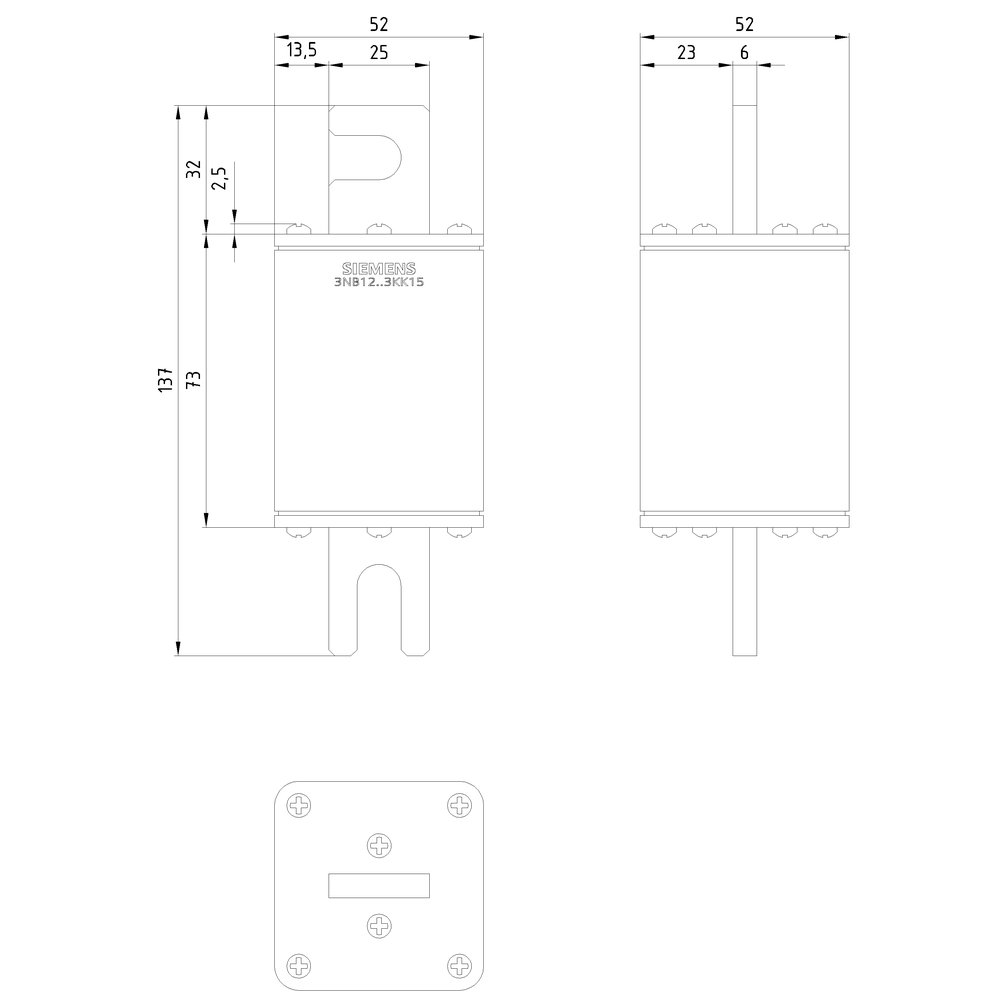

  • Dimensions: 170mm
  • Design: Slotted knives

Selectable mandatory product

Base product



Product

Manufacturer Material ID -
3NB1223-3KK15
Net Weight -
1.36kg

Additional Product Information

Commodity Code -
85361090
Country of Origin -
GR
UNSPSC -
39121626

Technical Specification

Power loss at rated current -
45 Watt
Rated current -
100 Ampere
Rated voltage DC -
1000 Volt
Voltage type -
DC

Availability On Request

£443.10
