3NB12343KK20

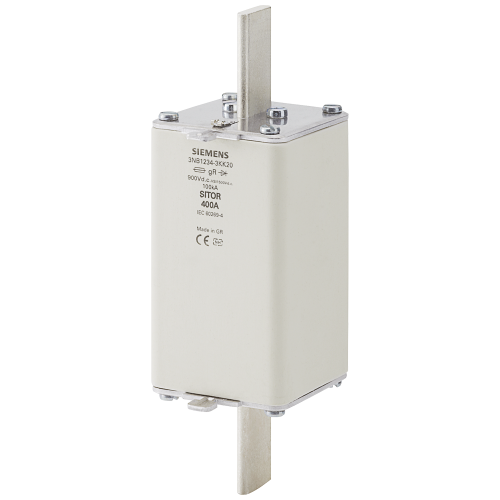

SITOR fuse link, with blade contacts, NH2L, In: 400 A, gR, Un DC: 900 V

Manufacturer's No: 3NB1234-3KK20     Manufacturer: Siemens
SITOR fuse link, with blade contacts, NH2L, In: 400 A, gR, Un DC: 900 V

Availability On Request

£482.55
  • SITOR fuse link with blade contacts
  • NH2L model
  • Rated current: 400 A
  • Rated voltage DC: 900 V
  • gR characteristic
  • Front indicator
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3NB1234-3KK20
Net Weight -
1.12kg

Additional Product Information

Commodity Code -
85361090
Country of Origin -
GR
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121626

Technical Specification

Construction size -
NH2
Utilization category -
gR (general purpose semiconductor protection)
Power loss at rated current -
68 Watt
Rated current -
400 Ampere
Rated voltage DC -
900 Volt
Type of fuse status indicator -
Top fuse status indicator
Voltage type -
DC

Availability On Request

£482.55
