3NB13424KK15

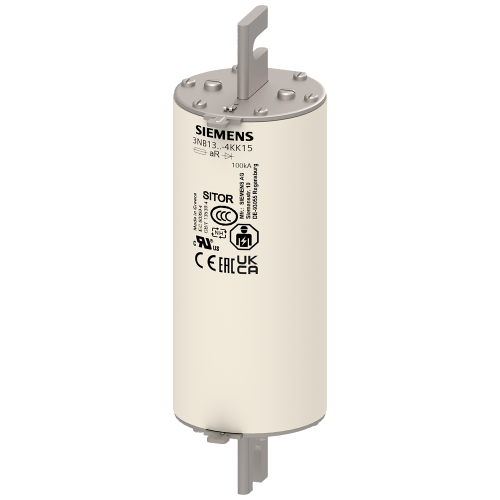

SITOR fuse link 630 A aR 1100 V DC/1800 V VSI 1300 V DC UL @MBC 5xIn

Manufacturer's No: 3NB1342-4KK15     Manufacturer: Siemens
SITOR fuse link 630 A aR 1100 V DC/1800 V VSI 1300 V DC UL @MBC 5xIn

Availability On Request

£1,045.80
  • Fuse size: 3
  • Current rating: 630A
  • Voltage rating: 1100V DC / 1800V VSI / 1300V DC UL
  • Mounting: MBC 5xIn
  • Connection: Screw connection M12

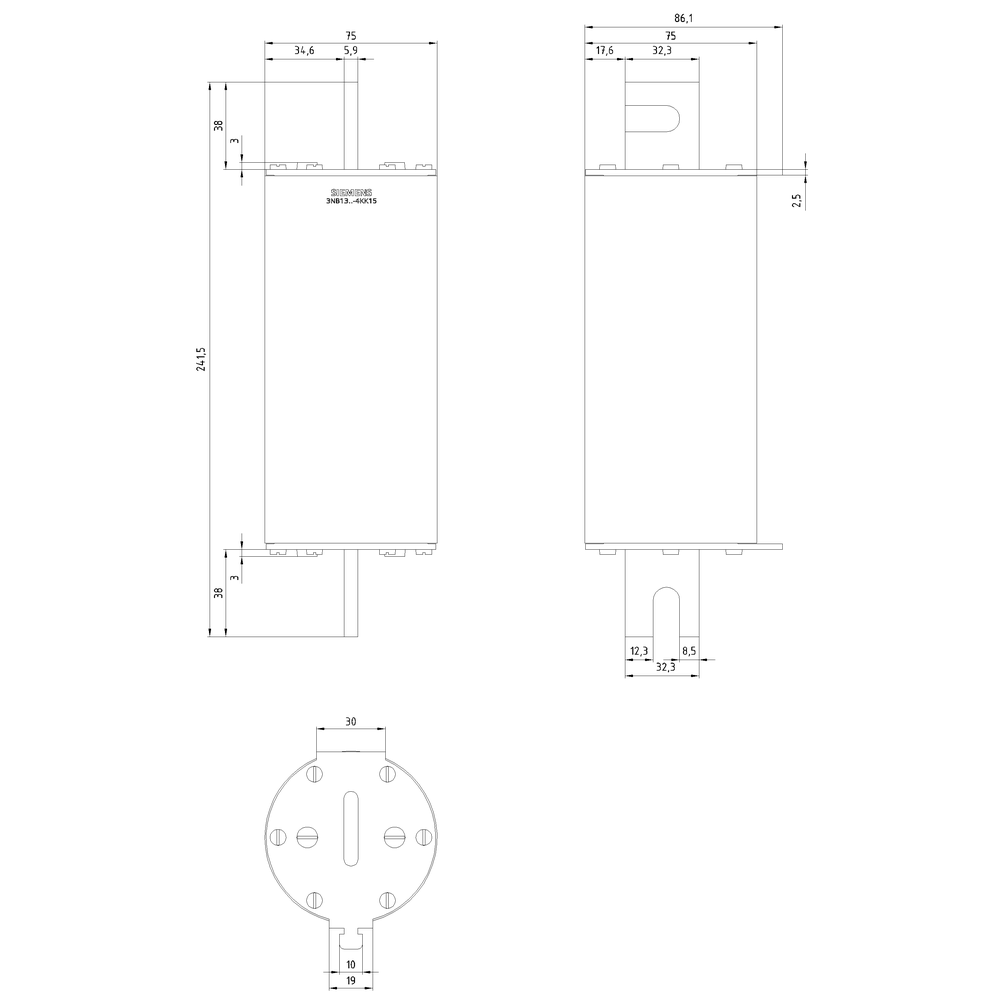

  • Dimensions: 210mm
  • Design: Slotted knives

Base product

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3NB1342-4KK15
Net Weight -
1.88kg

Additional Product Information

Commodity Code -
85361090
Country of Origin -
GR
UNSPSC -
39121626

Technical Specification

Power loss at rated current -
220 Watt
Rated current -
630 Ampere
Rated voltage DC -
1100 Volt
Voltage type -
DC

Availability On Request

£1,045.80
