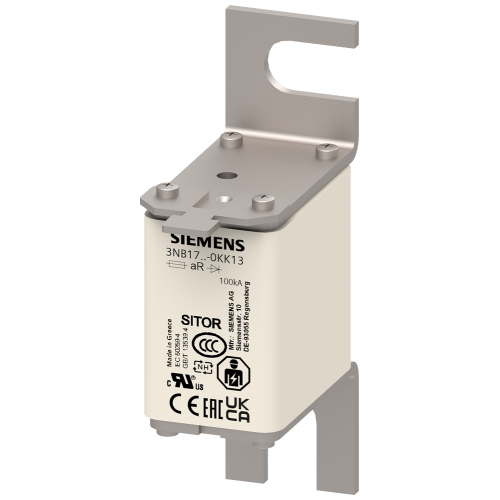

3NB17170KK13

SITOR fuse link 40 A aR 440 V DC/700 V VSI 500 V DC UL @MBC 6xIn

Manufacturer's No: 3NB1717-0KK13     Manufacturer: Siemens
SITOR fuse link 40 A aR 440 V DC/700 V VSI 500 V DC UL @MBC 6xIn

Availability On Request

£133.14
  • Fuse size: 00
  • Current rating: 40A
  • Voltage rating: 440V DC / 700V VSI / 500V DC UL
  • Mounting: MBC 6xIn
  • Connection: Screw connection M10
  • Bracket length: 80mm

Selectable mandatory product



Product

Manufacturer Material ID -
3NB1717-0KK13
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85361050
Country of Origin -
GR
UNSPSC -
39121626

Technical Specification

Power loss at rated current -
12.5 Watt
Rated current -
40 Ampere
Rated voltage DC -
440 Volt
Voltage type -
DC

Availability On Request

£133.14
Sign in or Register for customer prices.
