3NB17220KK13

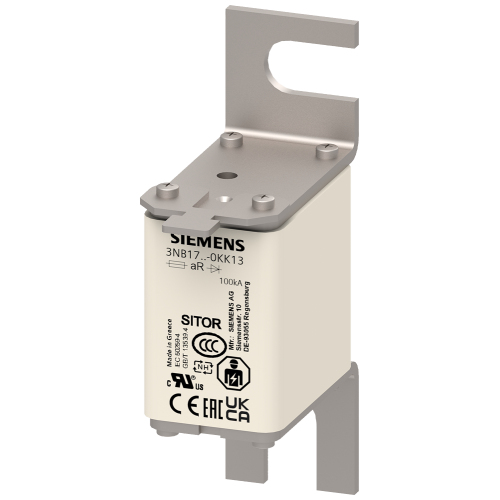

SITOR fuse link 80 A aR 440 V DC/700 V VSI 500 V DC UL @MBC 6xIn

Manufacturer's No: 3NB1722-0KK13     Manufacturer: Siemens
SITOR fuse link 80 A aR 440 V DC/700 V VSI 500 V DC UL @MBC 6xIn

Availability On Request

£137.97
  • Fuse size: 00
  • Current rating: 80A
  • Voltage rating: 440V DC / 700V VSI / 500V DC UL
  • Mounting: MBC 6xIn screw connection
  • Bracket size: 80mm
  • Suitable for aR applications

Selectable mandatory product



Product

Manufacturer Material ID -
3NB1722-0KK13
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85361090
Country of Origin -
GR
UNSPSC -
39121626

Technical Specification

Power loss at rated current -
23 Watt
Rated current -
80 Ampere
Rated voltage DC -
440 Volt
Voltage type -
DC

Availability On Request

£137.97
