3NB17250KK13

SITOR fuse link 160 A aR 440 V DC/700 V VSI 500 V DC UL @MBC 6xIn

Manufacturer's No: 3NB1725-0KK13     Manufacturer: Siemens

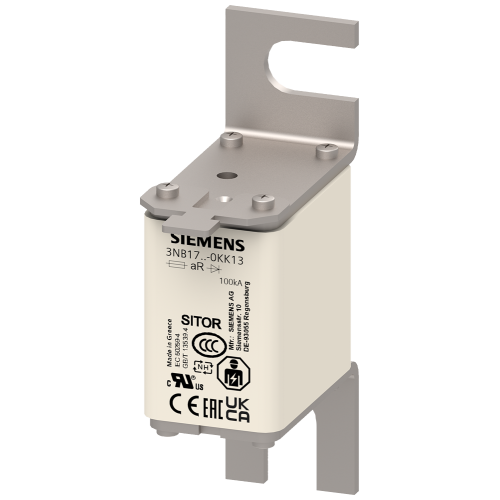

SITOR fuse link 160 A aR 440 V DC/700 V VSI 500 V DC UL @MBC 6xIn

Availability On Request

£145.74
  • Fuse size: 00
  • Current rating: 160A
  • Voltage rating: 440V DC / 700V VSI / 500V DC UL
  • Mounting: MBC 6xIn screw connection
  • Bracket size: M10, 80mm
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3NB1725-0KK13
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85361090
Country of Origin -
GR
UNSPSC -
39121626

Technical Specification

Power loss at rated current -
35.5 Watt
Rated current -
160 Ampere
Rated voltage DC -
440 Volt
Voltage type -
DC

Availability On Request

£145.74
