3NP11441DA20

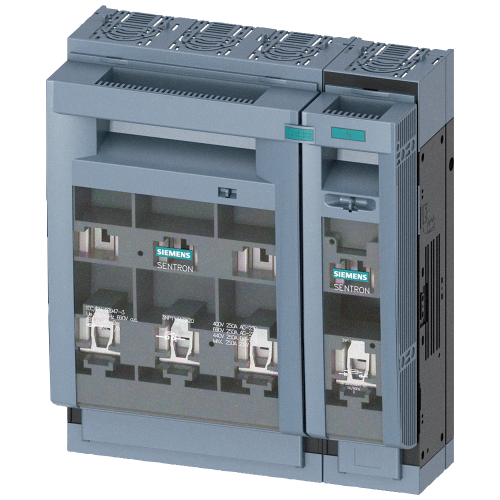

SENTRON, 3NP1 fuse switch disconnector, 4-pole, NH1, 250 A

Manufacturer's No: 3NP1144-1DA20     Manufacturer: Siemens
SENTRON, 3NP1 fuse switch disconnector, 4-pole, NH1, 250 A

Availability On Request

£268.05
  • Product: SENTRON Fuse Switch Disconnector 3NP1
  • Configuration: 4-pole
  • Fuse Type: NH1
  • Current Rating: 250 A
  • Mounting: Assembly on mounting plate
  • Connection: Box terminal
  • Cover Level: 70mm

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3NP1144-1DA20
Net Weight -
4.43kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
UNSPSC -
39122233

Technical Specification

Rated operation power at AC-23, 400 V -
- Kilowatt
Rated short-time withstand current lcw -
- kiloampere
Suitable for ground mounting -
Cable entry -
Other
Conditioned rated short-circuit current Iq -
80 kiloampere
Degree of protection (IP), front side -
IP40
Max. rated operation voltage Ue AC -
690 Volt
Number of poles -
4
Position control element -
Front
Rated permanent current Iu -
250 Ampere
Suitable for floor mounting -
Suitable for fuses -
NH0, NH1
Type of control element -
Cover grip
Type of electrical connection of main circuit -
Frame clamp
Version as safety switch -

Availability On Request

£268.05
