3RA62502EB33

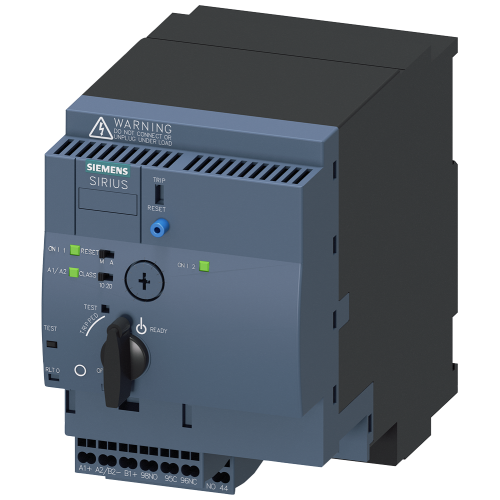

SIRIUS Compact load feeder Reversing starter 400 V 24 V AC/DC 50...60 Hz 8...32 A IP20 Connection ma

Manufacturer's No: 3RA6250-2EB33     Manufacturer: Siemens
SIRIUS Compact load feeder Reversing starter 400 V 24 V AC/DC 50...60 Hz 8...32 A IP20 Connection ma

View 3D

Availability Back Order

£841.51
  • Load feeder for reversing starter
  • Voltage: 400 V
  • Control voltage: 24 V AC/DC
  • Current: 8-32 A
  • Frequency: 50-60 Hz
  • Protection: IP20
  • Main circuit connection: Plug-in
  • Control circuit connection: Spring-type terminal
Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Question and Answer (Q&A video)
Instructional video
Instructional video
Instructional video


Product

Manufacturer Material ID -
3RA6250-2EB33
Net Weight -
2.53kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated power, 460 V, 60 Hz, 3-phase -
- Kilowatt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Rated conditional short-circuit current, type 2, 400 V -
- Ampere
Rated conditional short-circuit current, type 2, 230 V -
- Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
- Ampere
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Rated operation power at AC-3, 230 V, 3-phase -
7500 Kilowatt
Ambient temperature, upper operating limit -
60 Degrees celsius
Coordination class according to IEC 60947-4-3 -
Class 2
Degree of protection (IP rating) -
IP20
Degree of protection (NEMA) -
Other
Depth -
165 Millimetre
External reset possible -
Height -
191 Millimetre
Kind of motor starter -
Reversing starter
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
2
Number of command positions -
2
Number of indicator lights -
3
Overload release current setting -
8 Ampere
Rail mounting possible -
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current at AC-3, 400 V -
32 Ampere
Rated operation current Ie -
32 Ampere
Rated operation power at AC-3, 400 V -
15 Kilowatt
Release class -
Adjustable
Type of electrical connection for auxiliary- and control current circuit -
Spring clamp connection
Type of electrical connection of main circuit -
Other
Voltage type for actuating -
AC/DC
Width -
90 Millimetre
With short-circuit release -

Availability Back Order

£841.51
