3RA65001DB43

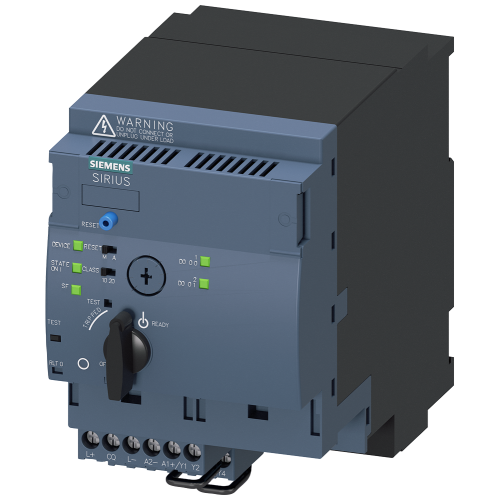

SIRIUS compact load feeder reversing starter for IO-Link, 690 V, 24 V DC, 3-12 A

Manufacturer's No: 3RA6500-1DB43     Manufacturer: Siemens
SIRIUS compact load feeder reversing starter for IO-Link, 690 V, 24 V DC, 3-12 A

View 3D

Availability Back Order

£811.28
  • SIRIUS compact starter for IO-Link
  • Voltage: 690 V main circuit, 24 V DC control circuit
  • Current: 3 to 12 A
  • IP20 protection rating
  • Main circuit connection: plug-in, without terminals
  • Control circuit connection: screw terminal
  • Alternative models: 3RK1308 or 3RA8
Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Question and Answer (Q&A video)
Instructional video
Instructional video
Instructional video


Product

Manufacturer Material ID -
3RA6500-1DB43
Net Weight -
2.47kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated power, 460 V, 60 Hz, 3-phase -
- Kilowatt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Rated conditional short-circuit current, type 2, 400 V -
- Ampere
Rated conditional short-circuit current, type 2, 230 V -
- Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
- Ampere
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Degree of protection (IP) -
IP20
Rated operation power at AC-3, 230 V, 3-phase -
3000 Kilowatt
Ambient temperature, upper operating limit -
60 Degrees celsius
Coordination class according to IEC 60947-4-3 -
Class 2
Degree of protection (IP rating) -
IP20
Degree of protection (NEMA) -
Other
Depth -
165 Millimetre
External reset possible -
Height -
170 Millimetre
Kind of motor starter -
Reversing starter
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of command positions -
2
Number of indicator lights -
5
Overload release current setting -
3 Ampere
Rail mounting possible -
Rated control supply voltage at DC -
24 Volt
Rated operation current at AC-3, 400 V -
12 Ampere
Rated operation current Ie -
12 Ampere
Rated operation power at AC-3, 400 V -
5.5 Kilowatt
Release class -
Adjustable
Supporting protocol for other bus systems -
Type of electrical connection for auxiliary- and control current circuit -
Screw connection
Type of electrical connection of main circuit -
Other
Voltage type for actuating -
DC
Width -
90 Millimetre
With short-circuit release -

Availability Back Order

£811.28
