3RF23403AA26

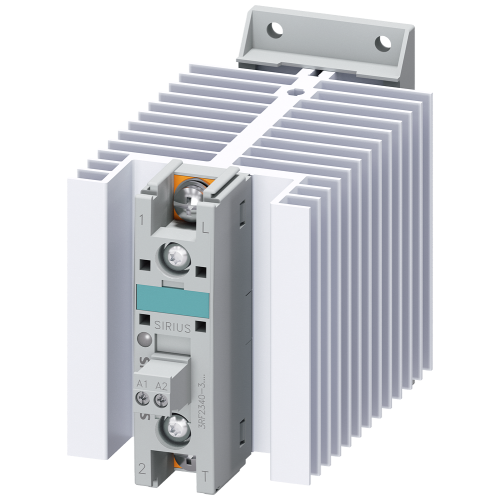

Solid-state contactor 1-phase 3RF2 AC 51 / 40 A / 40 °C 48-600 V / 110-230 V AC Ring cable connecti

Manufacturer's No: 3RF2340-3AA26     Manufacturer: Siemens
Solid-state contactor 1-phase 3RF2 AC 51 / 40 A / 40 °C 48-600 V / 110-230 V AC Ring cable connecti

Availability On Request

£118.37
  • Solid-state contactor
  • 1-phase
  • Current rating: 51 A at 40 °C
  • Voltage rating: 48-600 V AC, 110-230 V AC
  • Ring cable connection
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Instructional video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RF2340-3AA26
Net Weight -
0.46kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operation current Ie at AC-3, 400 V -
- Ampere
Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation power NEMA -
- Kilowatt
Number of main contacts as normally open contact -
1
Number of normally closed contacts as main contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated operation current Ie at AC-1, 400 V -
40 Ampere
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Type of electrical connection of main circuit -
Other
Operating voltage -
600 Volt
Modular version -
Number of phases -
1
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
110 Volt
Rated operation current Ie at AC-1 -
40 Ampere
Rated operation current Ie at AC-51 -
40 Ampere
Voltage type for actuating -
AC

Availability On Request

£118.37
